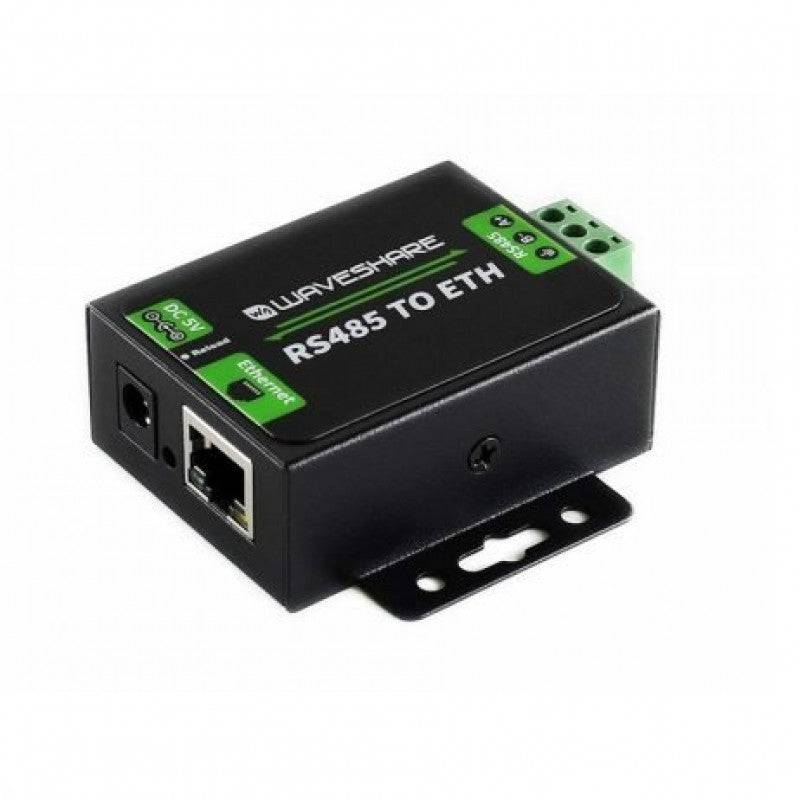

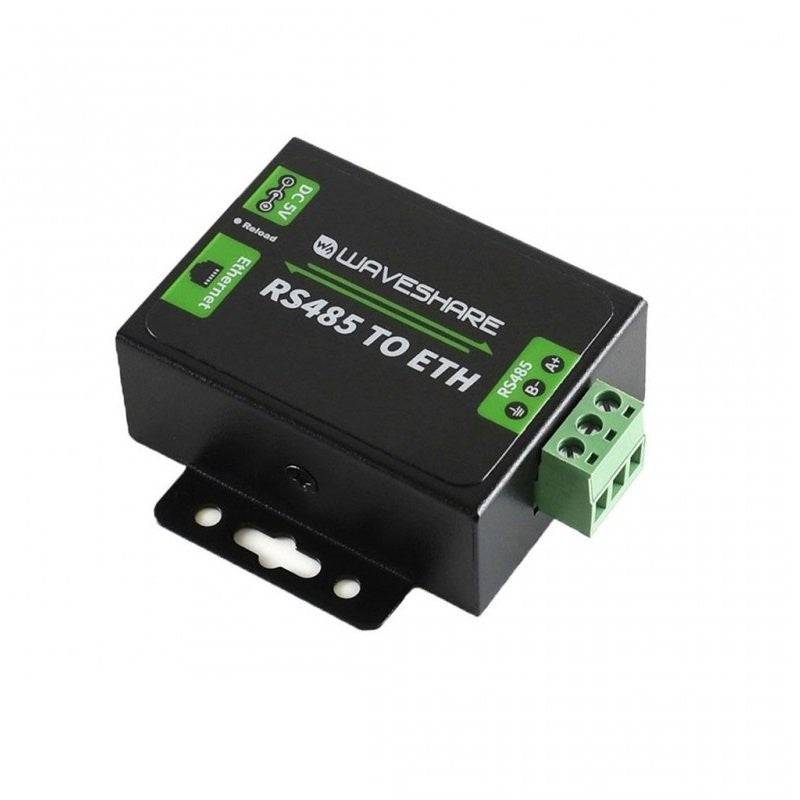

Waveshare RS485 to Ethernet Converter (Adapter with US Plug) with High-Speed Low-Power High-Stability Up-gradable Easy to Communicate Between RS485 and RJ45 Port Ethernet - RS3094

Description:

The RS485 to Ethernet Converter Module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via a webpage.

Specifications:

• Ethernet:
  • Connector: 4-pin RJ45
  • Communication rate: 10/100Mbps
  • Interface protection: 1.5KV electromagnetic isolation
  • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
  • TX cache: 6Kbyte
  • RX cache: 4Kbyte
• RS485:

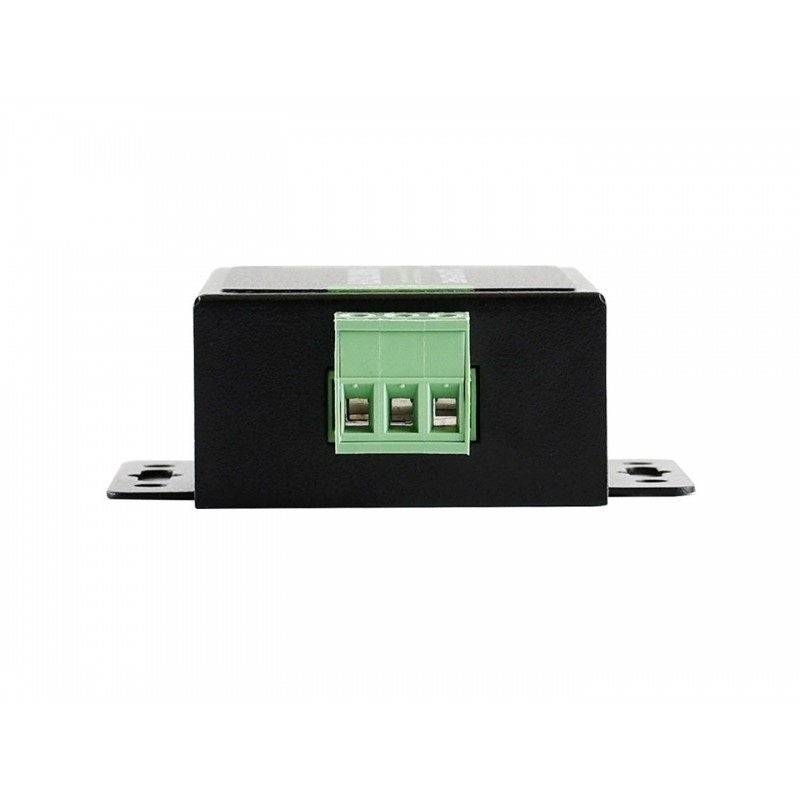

  • Connector: screw terminal (A+, B-, GND)
  • Data bit: 5bit, 6bit, 7bit, 8bit
  • Stop bit: 1, 2
  • Parity bit: None, Odd, Even, Mark, Space
  • Baudrate: 600bps~230.4Kbps
  • RX cache: 800byte
  • Hardware flow control: none
  • Interface protection:
    • 2KV ESD protection
    • RS485 pull up/down registers: 2.2KΩ
• Power:
  • Power supply: 5.0~7.0V (5V recommended)
  • Operating current: 150mA (@5V)
  • Power consumption: <1W
  • Interface protection: reverse-proof, ESD protection, anti-surge
• Environment:
  • Operating temperature: -25~75°C
  • Storage temperature: -40~105°C

Features:

• M0 series 32-bit ARM processor, fast speed, high efficiency
• 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable
• Configurable RS485 baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
• Available working modes: TCP Server, TCP Client, UDP Server, UDPClient, HTTPDClient (supports GET and POST)
• RS485 to Ethernet Converter supports DNS domain name resolution, configurable DNS server
• RS485 to Ethernet Converter supports DHCP, auto-obtained IP, or static IP
• Firmware is upgradable via the network
• Restore to factory settings via software and/or hardware
• RS485 to Ethernet Converter comes with a default MAC address, which is customizable
• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Useful Link:

Waveshare RS485 to Ethernet Converter

Package Included:

• 1 x RS485 to Ethernet Converter
• 1 x 5V Power Adapter with US Input Plug
