Waveshare 240×320 General 2.4inch LCD Display Module, 65K RGB - RS2123

• Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V; When using 3.3V power supply, the logic voltage is 3.3V)
• Interface: SPI
• LCD Type: TFT
• Controller: IL9341
• Resolution: 240(V) x 320(H)RGB
• Display Size: 36.72（H）x 48.96（V）mm
• Pixel Size: 0.153（H）x 0.153（V）mm
• Dimension: 70.5 x 43.3(mm)

Description :

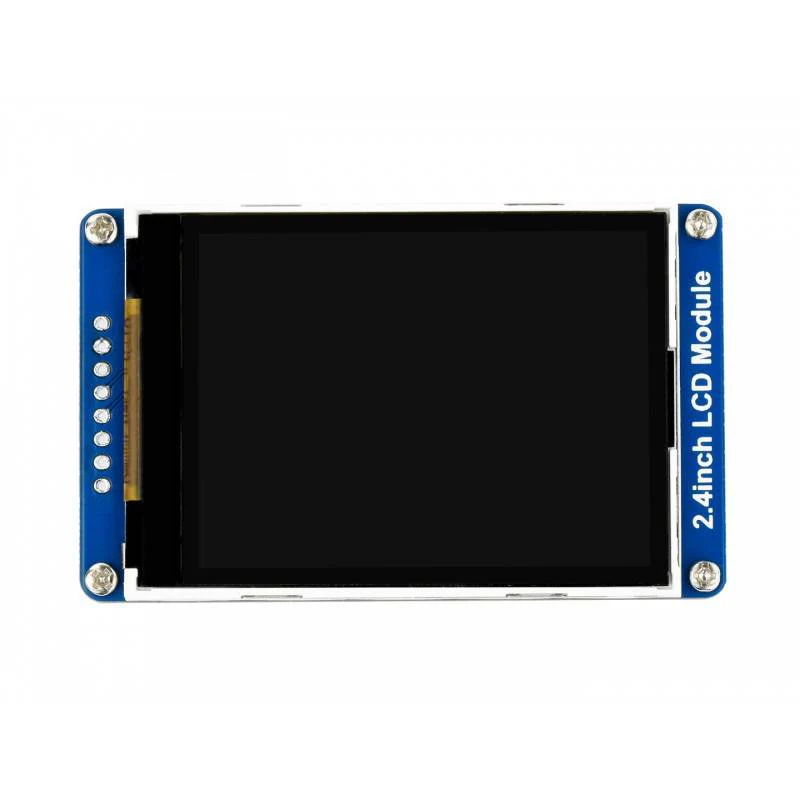

2.4inch LCD Display Module, 65K RGB Colors, 240×320 Resolution, SPI Interface

As a 2.4inch TFT display module with a resolution of 240 * 320, it uses the SPI interface for communication. LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and can display English, Chinese as well as pictures.

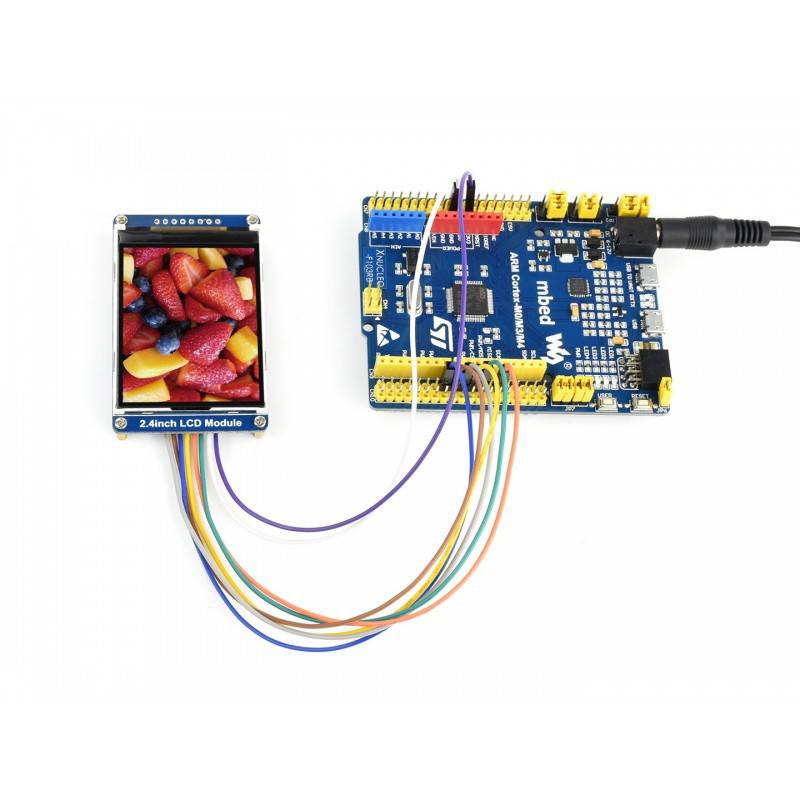

We provide complete supporting Raspberry Pi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and Arduino demos.

Specification :

• Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V; When using 3.3V power supply, the logic voltage is 3.3V)
• Interface: SPI
• LCD Type: TFT
• Controller: IL9341
• Resolution: 240(V) x 320(H)RGB
• Display Size: 36.72（H）x 48.96（V）mm
• Pixel Size: 0.153（H）x 0.153（V）mm
• Dimension: 70.5 x 43.3(mm)

Features:

• 240×320 resolution, 65K RGB colors, clear and colorful displaying effect

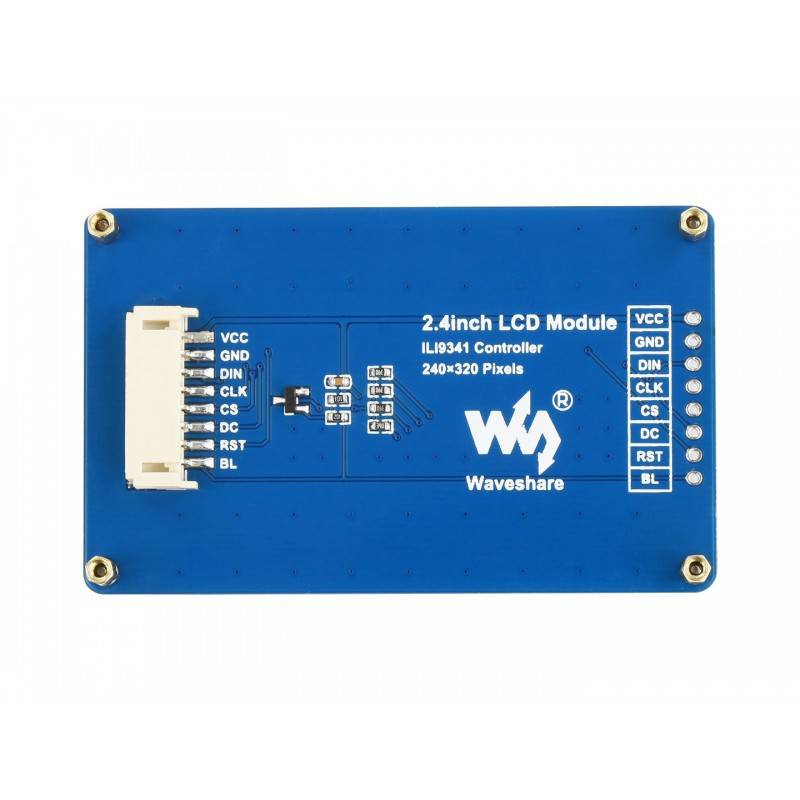

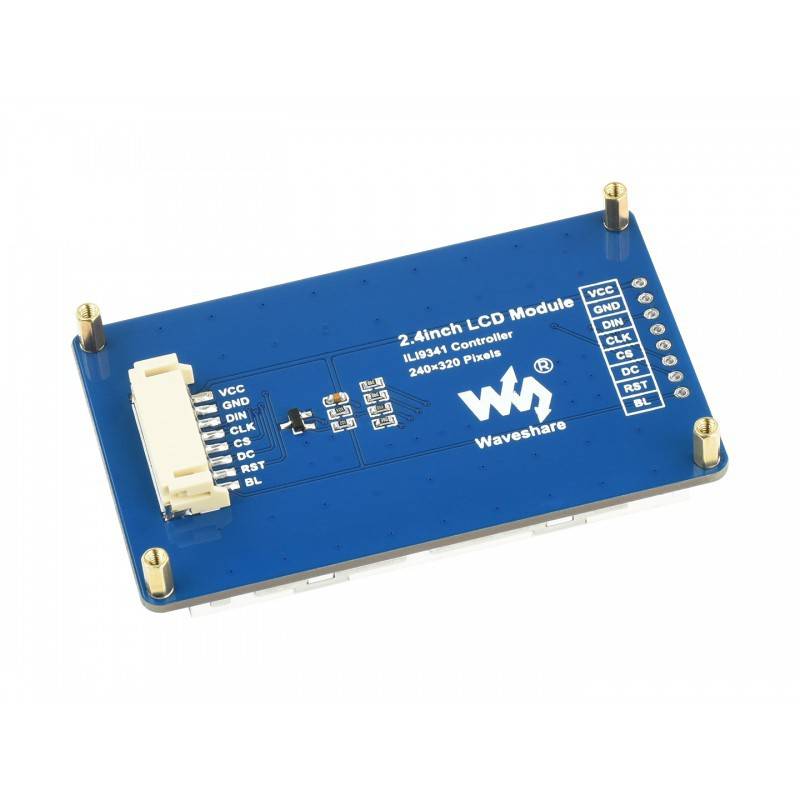

• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Package Included :

• 1 X 2.4inch LCD Module
• 1 X PH2.0 8PIN 20cm cable
