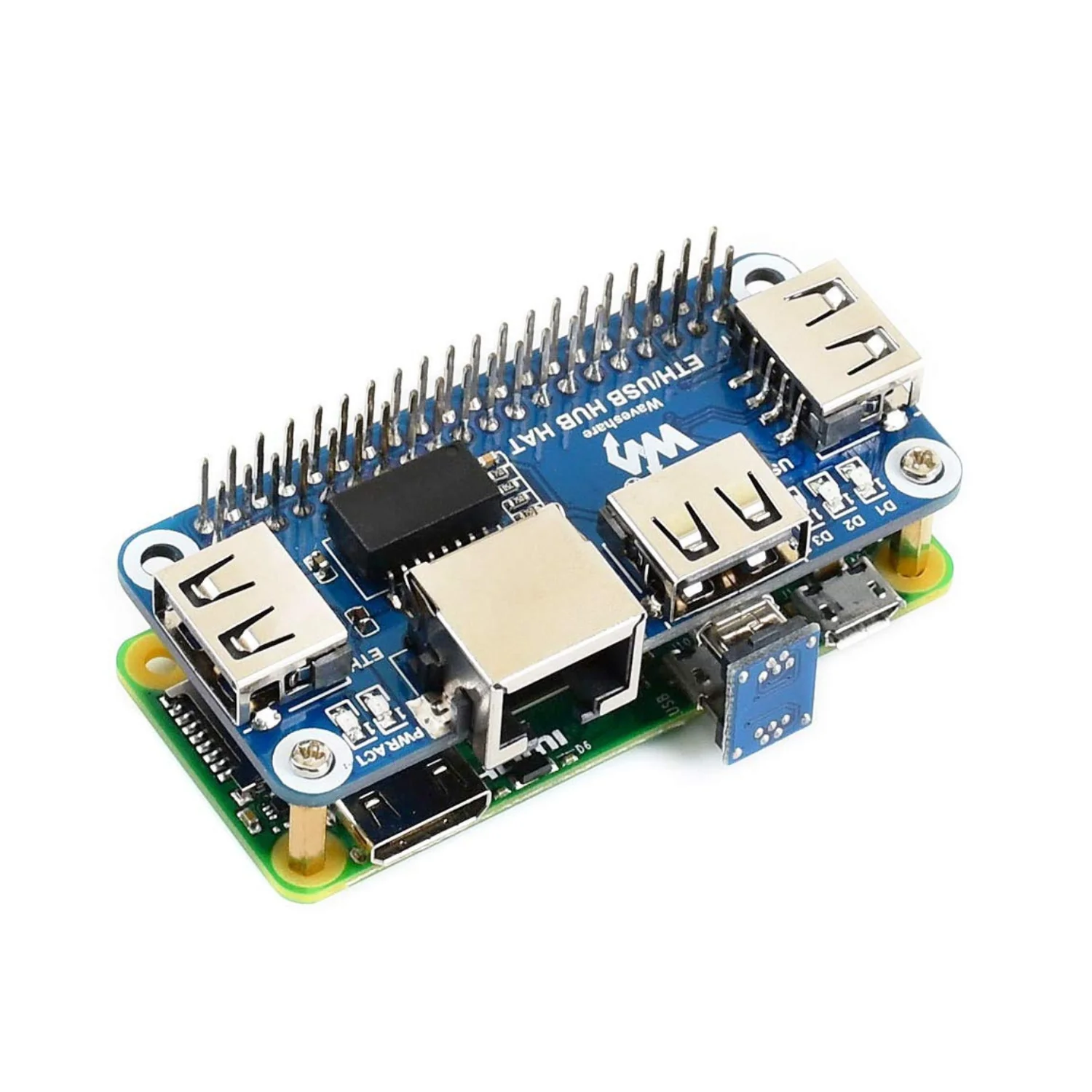

Waveshare Ethernet/USB HUB HAT Expansion Board For Raspberry Pi 3B/2B/Zero/Zero W/ WH, With 1 RJ45 Ethernet Port, 3 USB Ports - RS2408

Description:

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus an RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Specifications:

• Operating Voltage: 5V
• Dimension: 65mm × 30mm
• Mounting Hole Size: 3.0mm

Features:

• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• On-board multi indicators, for monitoring the status of power, Ethernet, and each USB port

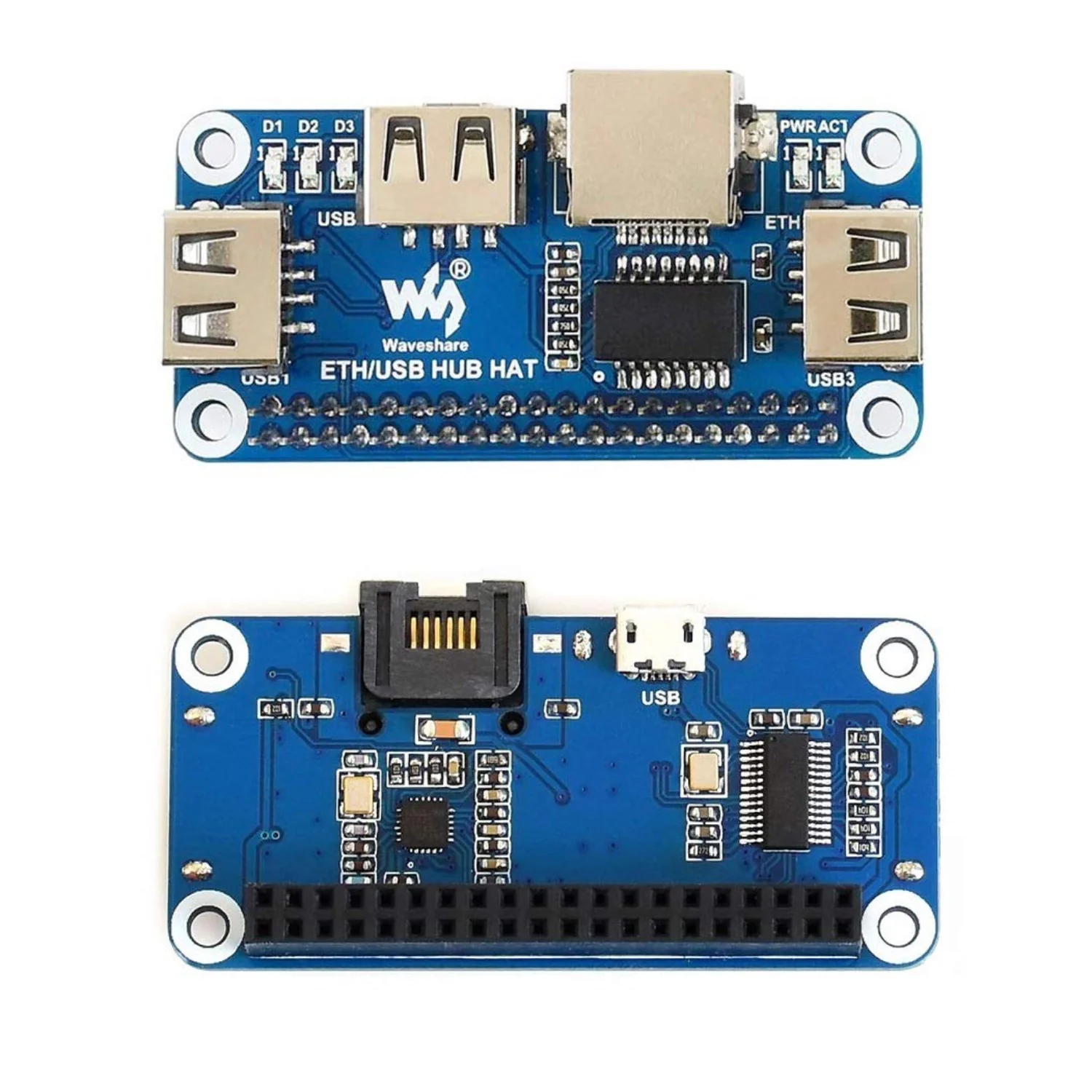

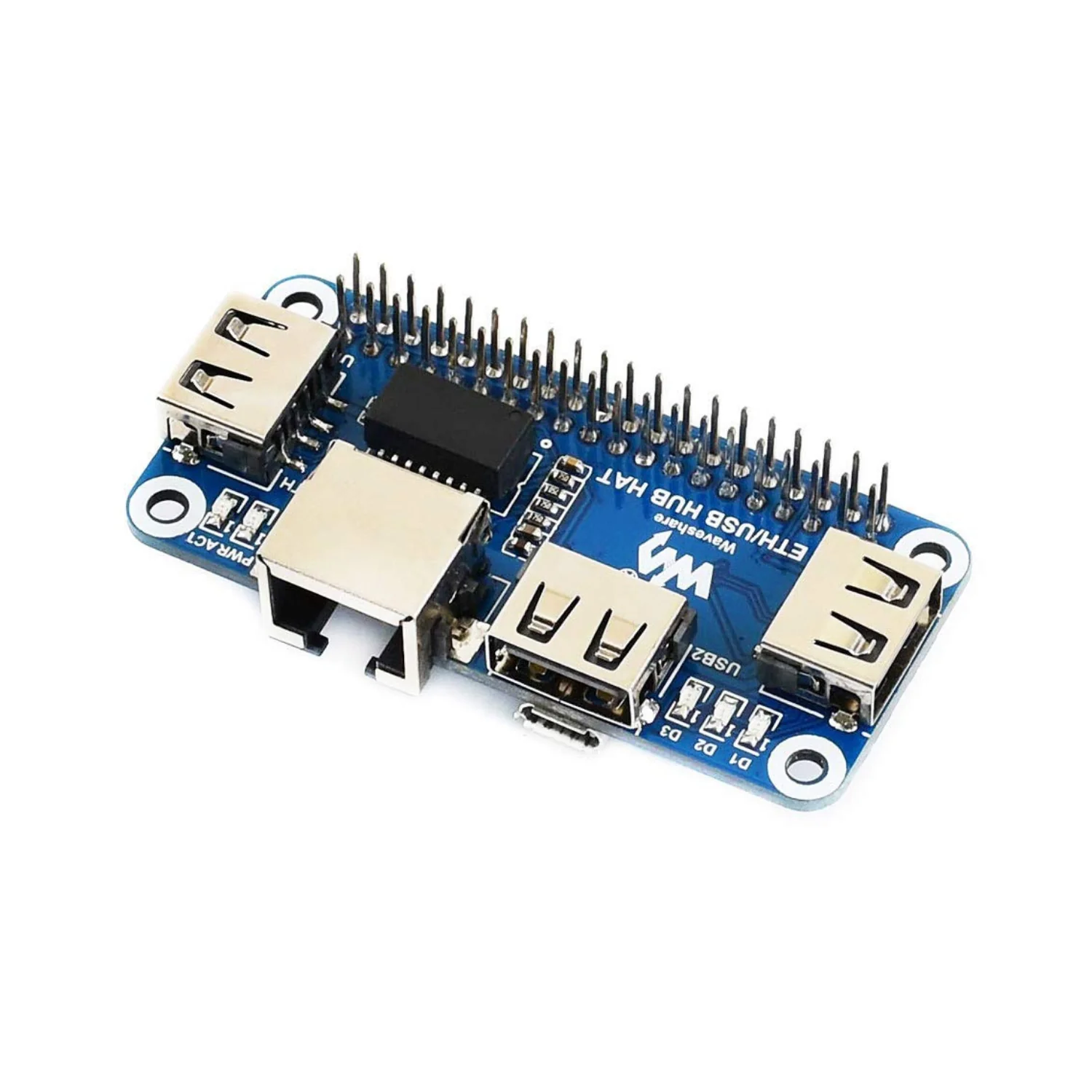

Pin Descriptions:

1. Raspberry Pi GPIO interface: For Connecting Raspberry Pi
2. USB extended ports: USB1-USB3
3. RJ45 port: 10/100M Ethernet interface
4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB
Raspberry Pi Zero/Zero 2W/Zero W/Zero WH. connected via Micro USB connector.
Raspberry Pi B+/2B/38/3B+/4B. connected via Micro USB cable.
5. TS8121A: Ethernet wave filter
6. RTL8152B: 10/100M Ethernet chip
7. FE1.1S: USB HUB chip
8. LED indicators:
PWR: power indicator
ACT: Ethernet indicator
D1-D3: dedicated indicator for USB1-USB3 respectively.

Package Included:

1 x Waveshare Ethernet/USB HUB HAT Expansion Board For Raspberry Pi 3B/2B/Zero/Zero W/ WH, With 1 RJ45 Ethernet Port, 3 USB Ports
