-70%Waveshare 7.5inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 800×480, Black / White, SPI - RS725—
$48.29
$14.49The Story
Description :
7.5inch EPD (Electronic Paper Display) Module For Raspberry Pi Pico, 800 × 480 Pixels, Black / White, SPI Interface.
Features
- No backlight keeps displaying last content for a long time even when power down.
- Ultra-low power consumption, basically power is only required for refreshing.
- SPI interface requires minimal IO pins.
- 2 x user buttons and 1 x reset button for easy interaction.
Specification
- Operating voltage: 3.3V
- Interface:3-wire SPI, 4-wire SPI
- Outline dimensions: 170.2 × 111.2mm
- Display size: 163.2 × 97.92mm
- Dot pitch: 0.204 × 0.204mm
- Resolution: 800 × 480 pixels
- Display color: Black, white
- Greyscale: 2
- full refresh time: 5s
- Refresh power: 46.4mW (typ.)
- Standby current: <0.01uA (almost 0)
- Viewing Angle: >170°
Package Included :

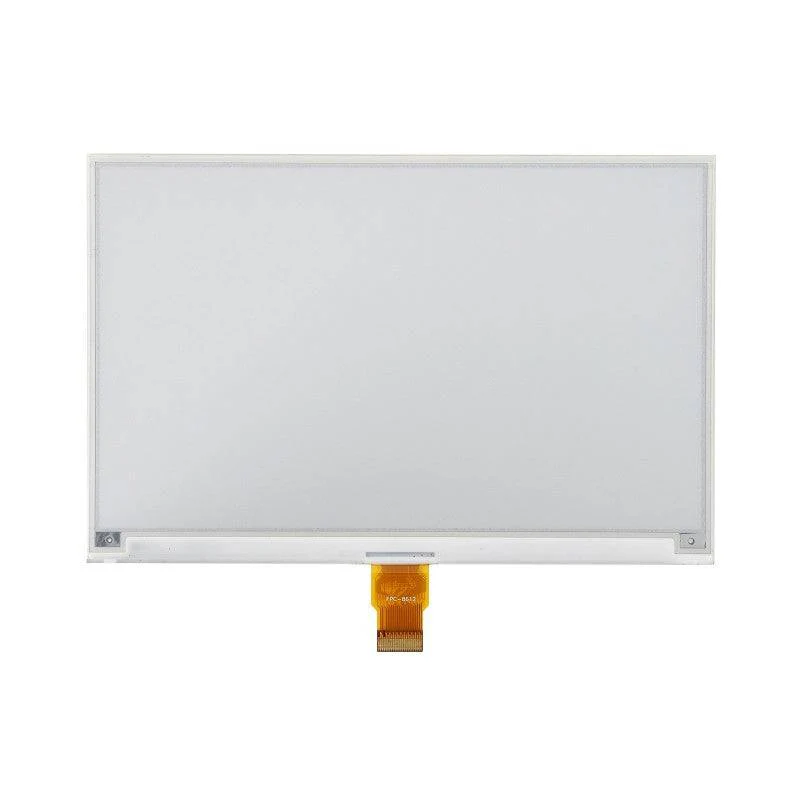

- 7.5inch e-Paper x1

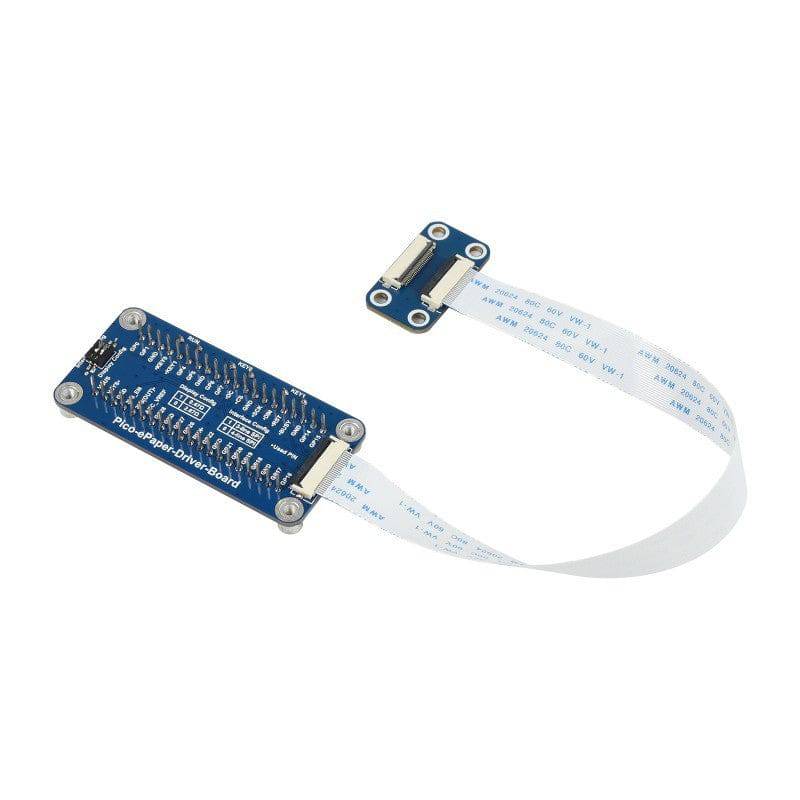

- Pico-ePaper-Driver-Board x1
- Standoff pack x1
