$16.00

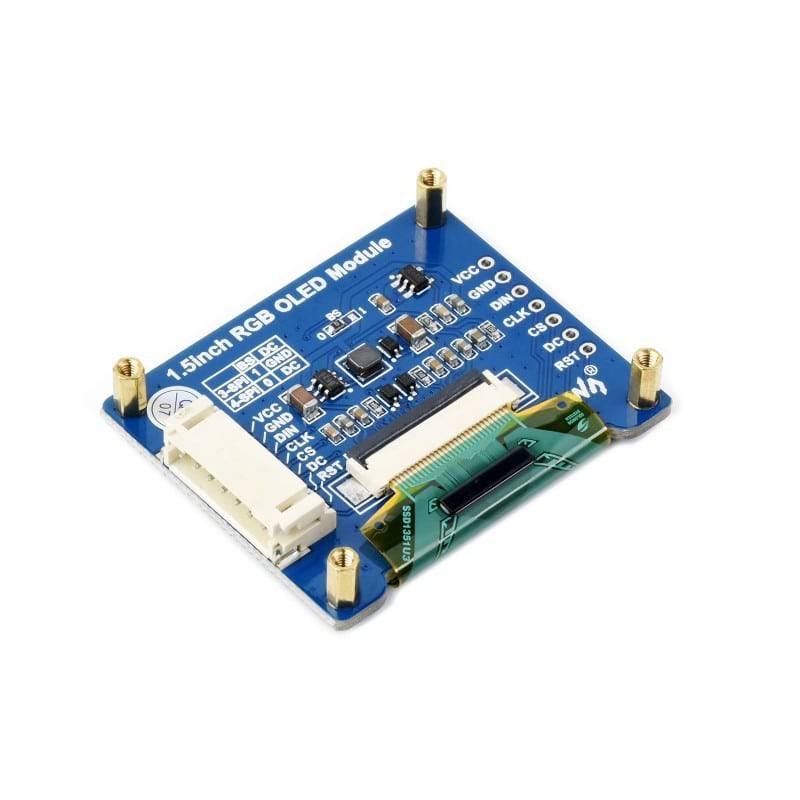

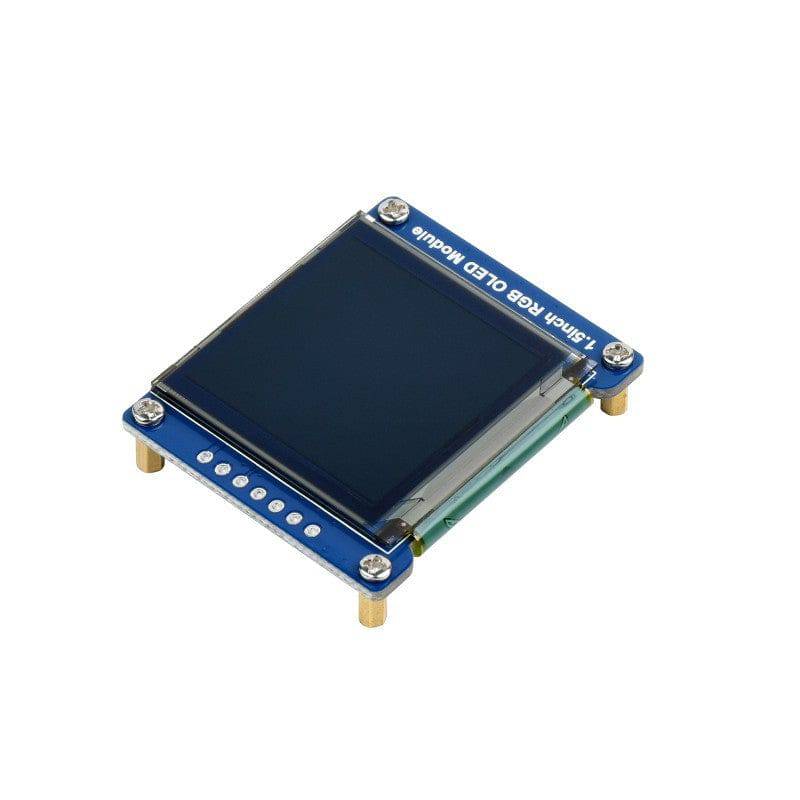

Waveshare 1.5inch RGB OLED Display Module, 65K RGB Colors, 128×128, SPI - RS2411—
$16.00
The Story
- Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
- Support interface: 4-wire SPI, 3-wire SPI
- Controller: SSD1351
- Resolution: 128(H)RGB x 128(V)
- Dimension: 26.855（H）x 26.855（V）mm
- Pixel size: 0.045(H) x 0.194(V) mm
- Display color: 65K color
Description :
1.5inch RGB OLED Module provides Raspberry Pi, STM32, and Arduino demos.
Specification
- Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
- Support interface: 4-wire SPI, 3-wire SPI
- Controller: SSD1351
- Resolution: 128(H)RGB x 128(V)
- Dimension: 26.855（H）x 26.855（V）mm
- Pixel size: 0.045(H) x 0.194(V) mm
- Display color: 65K color
Features :
- 128×128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

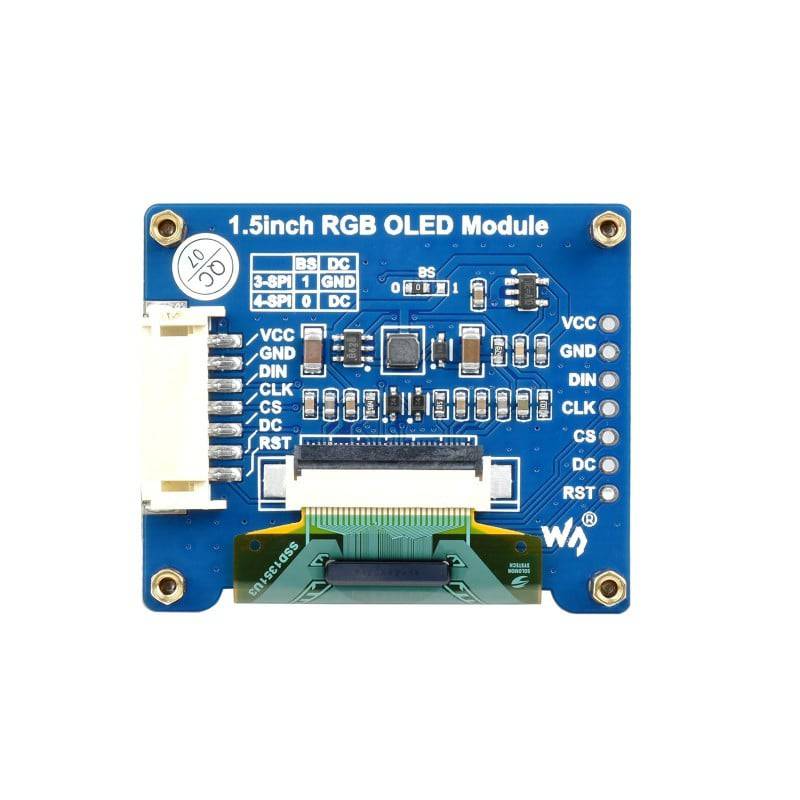

Pinout :
| PIN | Description |
| VCC | 3.3V/5V Power input |
| GND | Ground |
| DIN | Data input |
| SCL | Clock input |
| CS | Chip select, active low |
| DC | Data/command signal selection, low level indicates command, high level indicates data |
| RST | Reset signal, active low |
Package Included :
- 1.5inch RGB OLED Module x1
- PH2.0 7PIN cable x1
