Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044
HomeStore

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044

$7.90
Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044—
$7.90

The Story

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

Description :

This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.

Feature :

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specification :

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

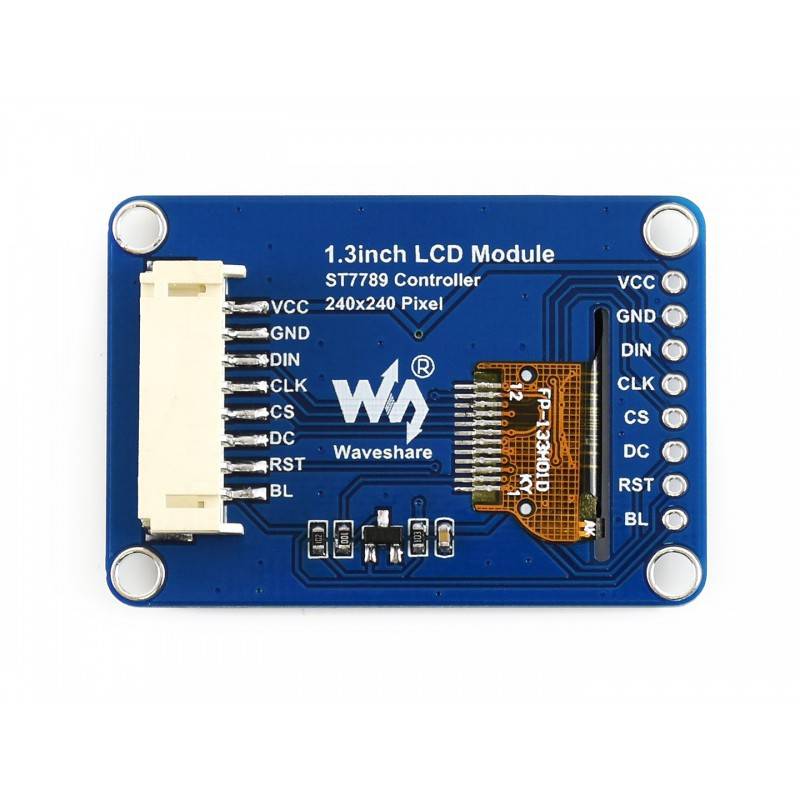

Interface :

  • VCC : Power (3.3V/5V input)
  • GND : Ground
  • DIN : SPI data input
  • CLK : SPI clock input
  • CS : Chip selection, low active
  • DC : Data/Command selection (high for data, low for command)
  • RST : Reset, low active
  • BL : Backlight

Dimension :

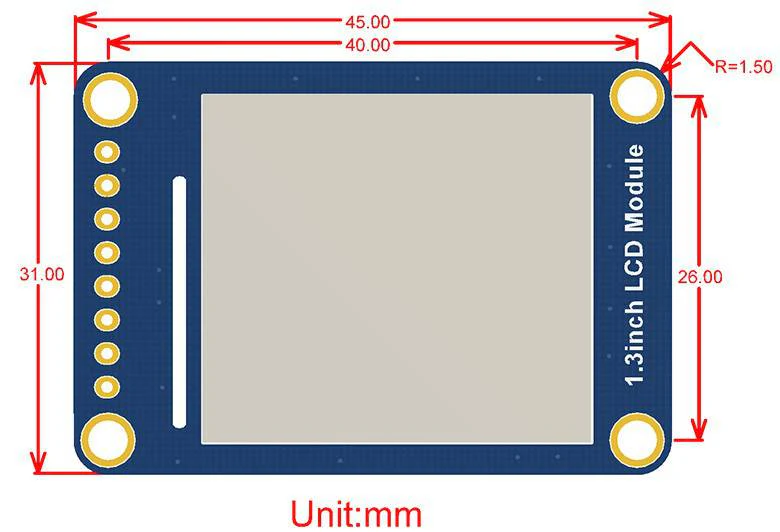

1.3inch LCD Module dimensions

Package Included :

1 X 1.3inch LCD Module
1 X PH2.0 20cm 8Pin

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

Description :

This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.

Feature :

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specification :

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

Interface :

  • VCC : Power (3.3V/5V input)
  • GND : Ground
  • DIN : SPI data input
  • CLK : SPI clock input
  • CS : Chip selection, low active
  • DC : Data/Command selection (high for data, low for command)
  • RST : Reset, low active
  • BL : Backlight

Dimension :

1.3inch LCD Module dimensions

Package Included :

1 X 1.3inch LCD Module
1 X PH2.0 20cm 8Pin
