Description:

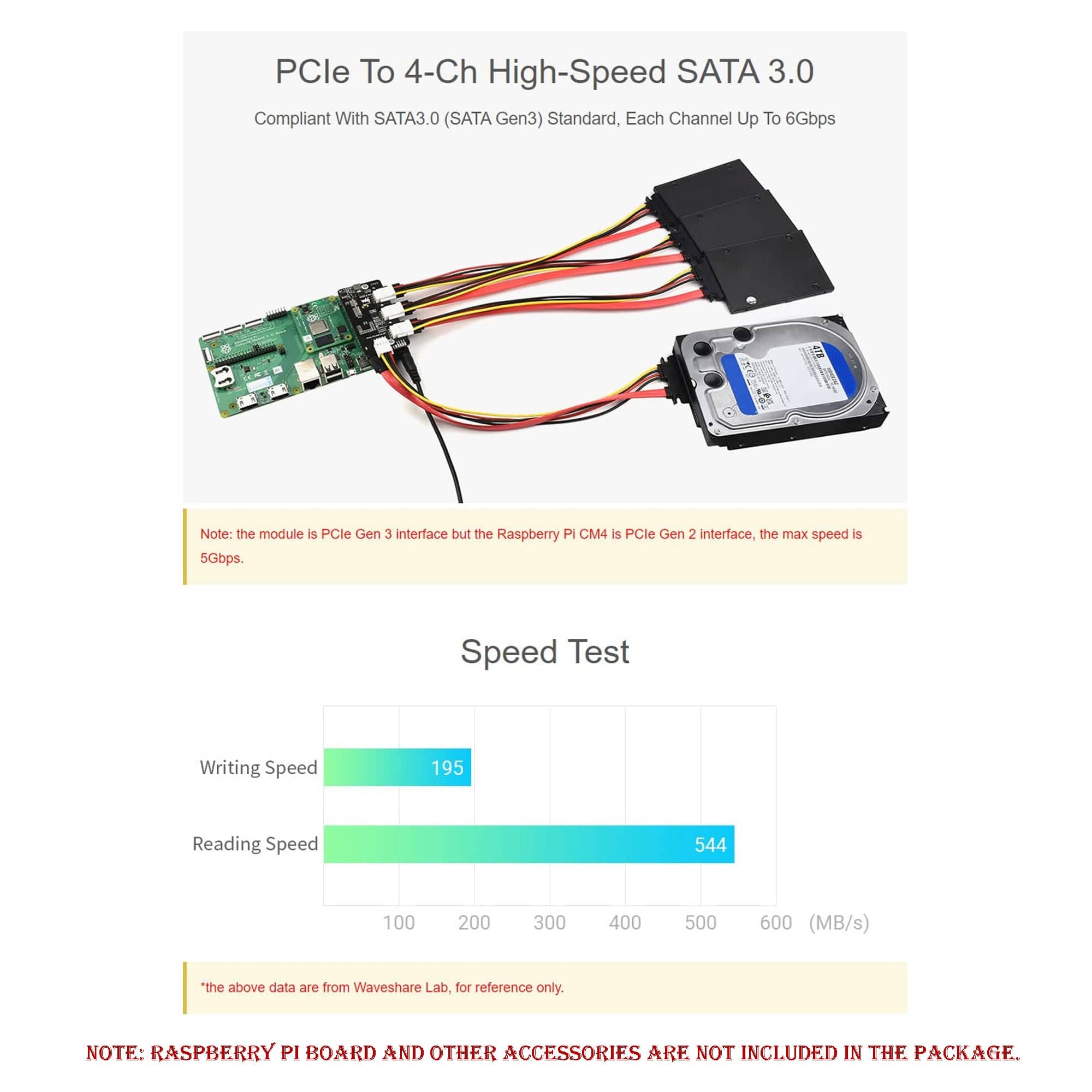

PCIe to 4-channel SATA expansion card supports PCIe Gen3 x1, the maximum speed of a single channel is 6Gbps. Onboard SATA host controller (AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It's a low-latency, low-cost cost and low-power AHCI controller. With four SATA ports and cascaded port multipliers, the PCIe TO 4-Ch SATA 3.0 Expander can enable users to build up various high-speed IO systems, including servers, high-capacity system storage, or surveillance platforms.
Features:
- Supports single-channel PCI Express.
- Four power-saving modes of L0s/L1/L23/L3.
- Supports L1 sub-state deep power-saving mode.
- PCIe TO 4-Ch SATA 3.0 Expander supports SRIS, AER, and LTR.
- Supports SATA LED.
- Supports NCQ and AHCI SPEC 1.4.
- Four SATA3.0 (6Gbps) ports.
- Supports port multiplier command-based switching.
- Supports SATA Partial/Dormancy power management.
- Does not support direct access to the PC motherboard.
- Supporting 5V and 12V SATA HDDs (2.5" and 3.5" HDDs), but it does not support the M.2 interface.
Useful Link:
Waveshare PCIe TO 4-Ch SATA 3.0 Expander
Package Included:
- 1 x PCIe TO 4-Ch SATA 3.0 Expander
- 1 x SATA Adapter Cable
- 1 x Screws pack
