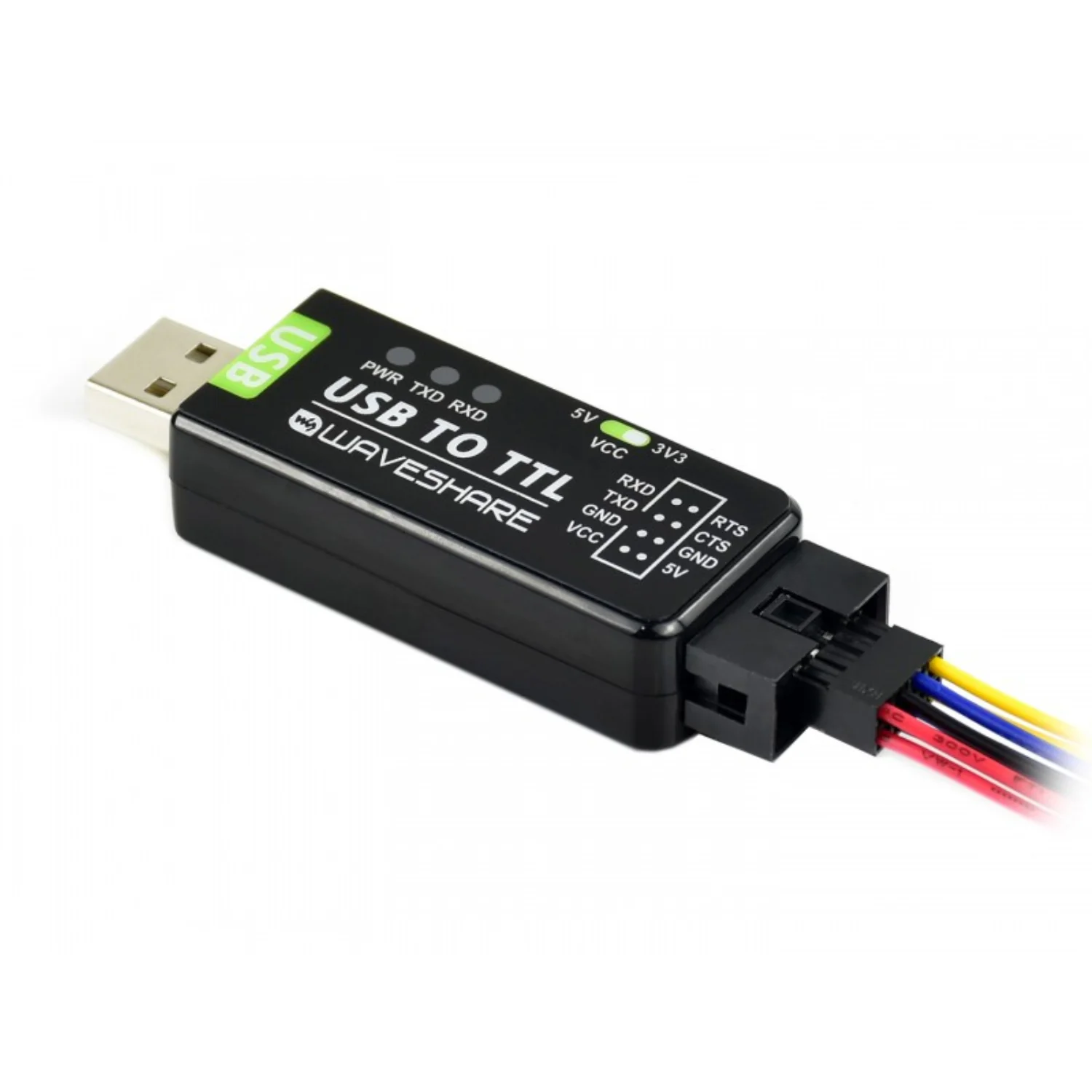

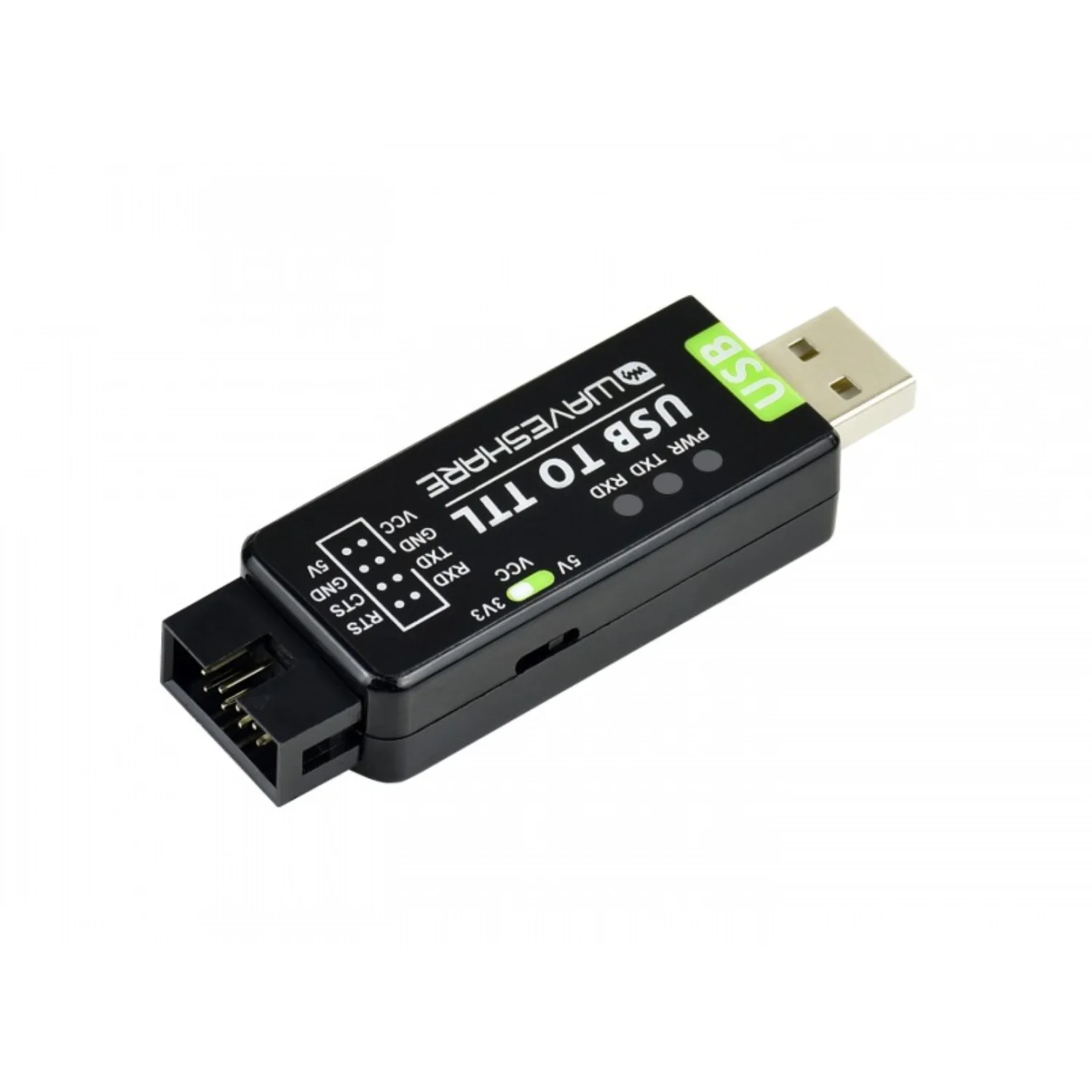

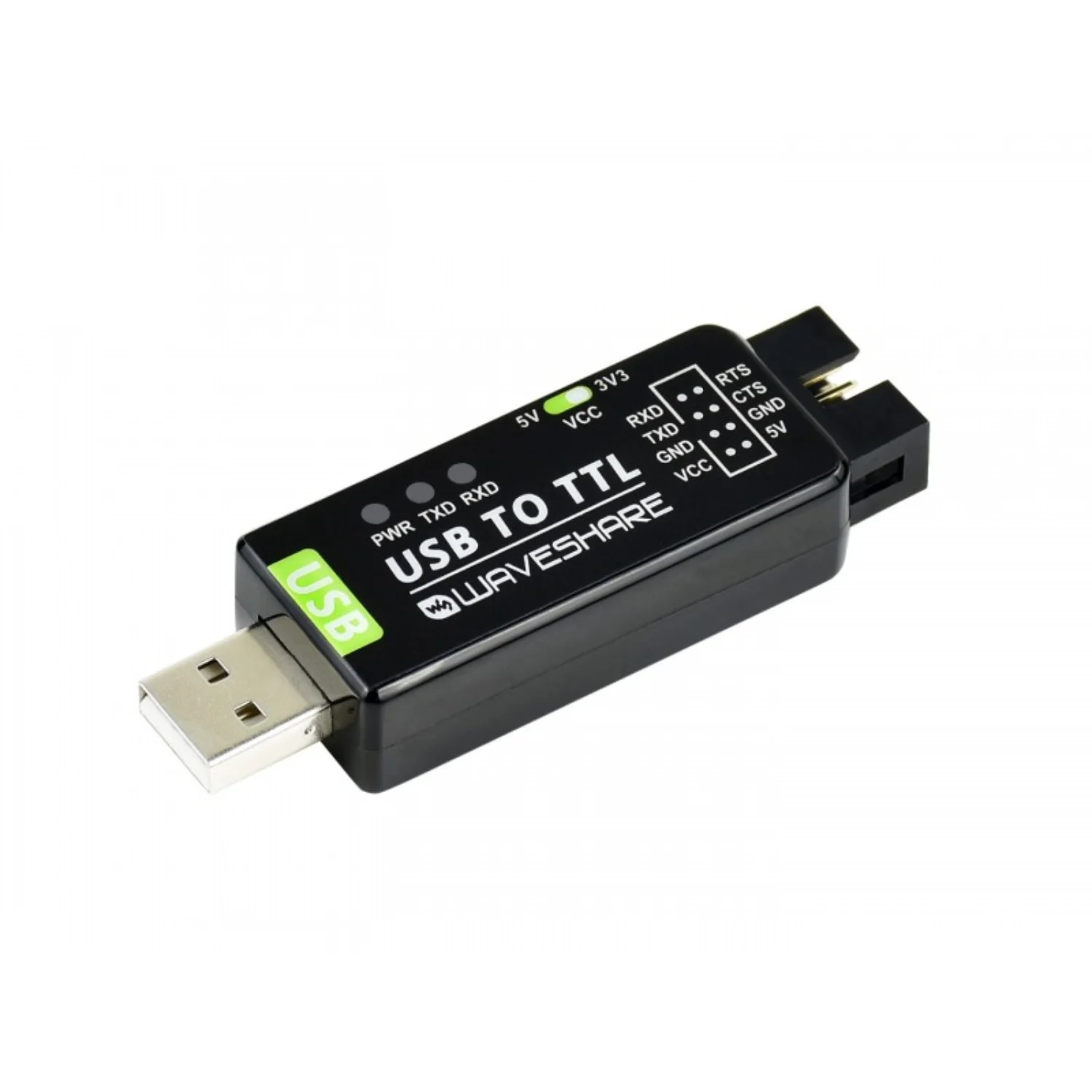

Waveshare FT232RNL USB-to-TTL Converter Industrial USB-to-TTL Adapter Multi Protection & Systems Support USB-to-TTL Converter For Industrial Applications - RS3047

Description:

This is an onboard FT232RL Industrial USB to TTL Converter from Waveshare. The FT232RL provides better stability and compatibility, enabling industrial-grade high-performance communication between computer and TTL devices. Industrial USB TO TTL Converter Features Embedded resettable fuse and is compatible with popular systems like Win7/8/8.1/10, Mac, Linux, Android, WinCE, etc. The three onboard LED indicators establish easy checking of the operating status, convenient for programming/debugging.

Note:

• USB cable is not included
• This converter is designed to work on the TTL level; NEVER connect it to the RS232 level to avoid damage

Specifications:

Product Category	Industrial USB TO TTL converter	Host Port	USB
Data Rate	300 bps ~ 3 Mbps	Device Port	UART
USB Port	Connector: USB-A Protection: resettable fuse, ESD protection
UART Port	Connector: 8-pin foolproof header Protection: IO protection diode
Indicator	PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data

Features:

• Original FT232RL.
• Stable Transmission.
• Multi-device & multi-system support.

Indicators:

Pin Description:

5V	5V output
VCC	3.3V or 5V output, configured by switch
GND	Ground
TXD	Connecting to MCU. RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD	Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS	Connecting to MCU. CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS	Connecting to MCU. RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Useful Link:

Waveshare FT232RNL USB-to-TTL Converter

Package Included:

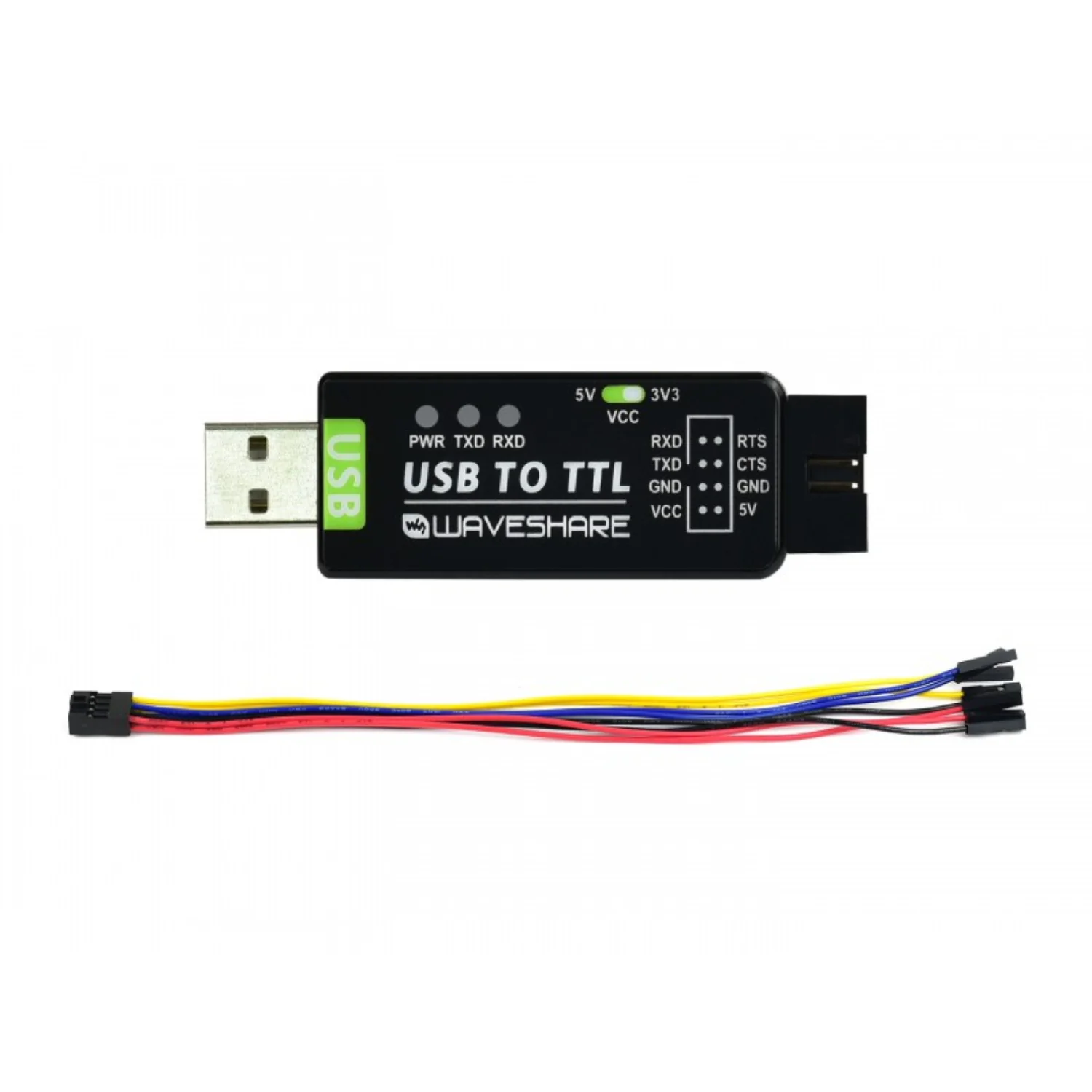

• 1 x Waveshare FT232RNL USB-to-TTL Converter
• 1 x 8 PIN fool-proof wire
