HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930
HomeStore

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930

$7.04
HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930—
$7.04

The Story

Description:

HC-42 Bluetooth Module You can easily send data serially to, for example, your phone, tablet, or Other (HC-42) Bluetooth modules. HC-05 could be set to master or slave by a user. HC-06 can only be master or slave which could be customized.

Specifications:

  • Working Temperature: -25℃~+75℃
  • Part Number: HC-42D
  • Version: BLE 5.0
  • Module Size: 37mm *15.6 mm
  • Frequency Band: 2.4G
  • Air Rate: 1Mbps/2Mbps
  • Working Voltage: 1.8~3.6V
  • Antenna: PCB internal antenna
  • Shutdown Current: 0.3μA
  • Communication Interface: UART
  • Sensitivity: -96dBm@1Mbps
  • Level: 1.8~3.6V， Same to Working Voltage
  • Working Humidity: 10％~90％
  • Transmit Power: -40~4dBm
  • Storage Temperature: -40℃~+85℃
  • Reference Distance: 40m/2Mbps（BLE 5.0）
HC-42 Bluetooth 5.0 BLE Serial Module: 6-Pin, Long-Range Data Transfer
HC-42 6-Pin Serial Port Bluetooth 5.0 BLE Module for Wireless Data
HC-42 BLE 5.0 Serial Module: 6-Pin, Effortless Long-Term Wireless Integration

Package Included:

1 x HC-42 Bluetooth Module

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

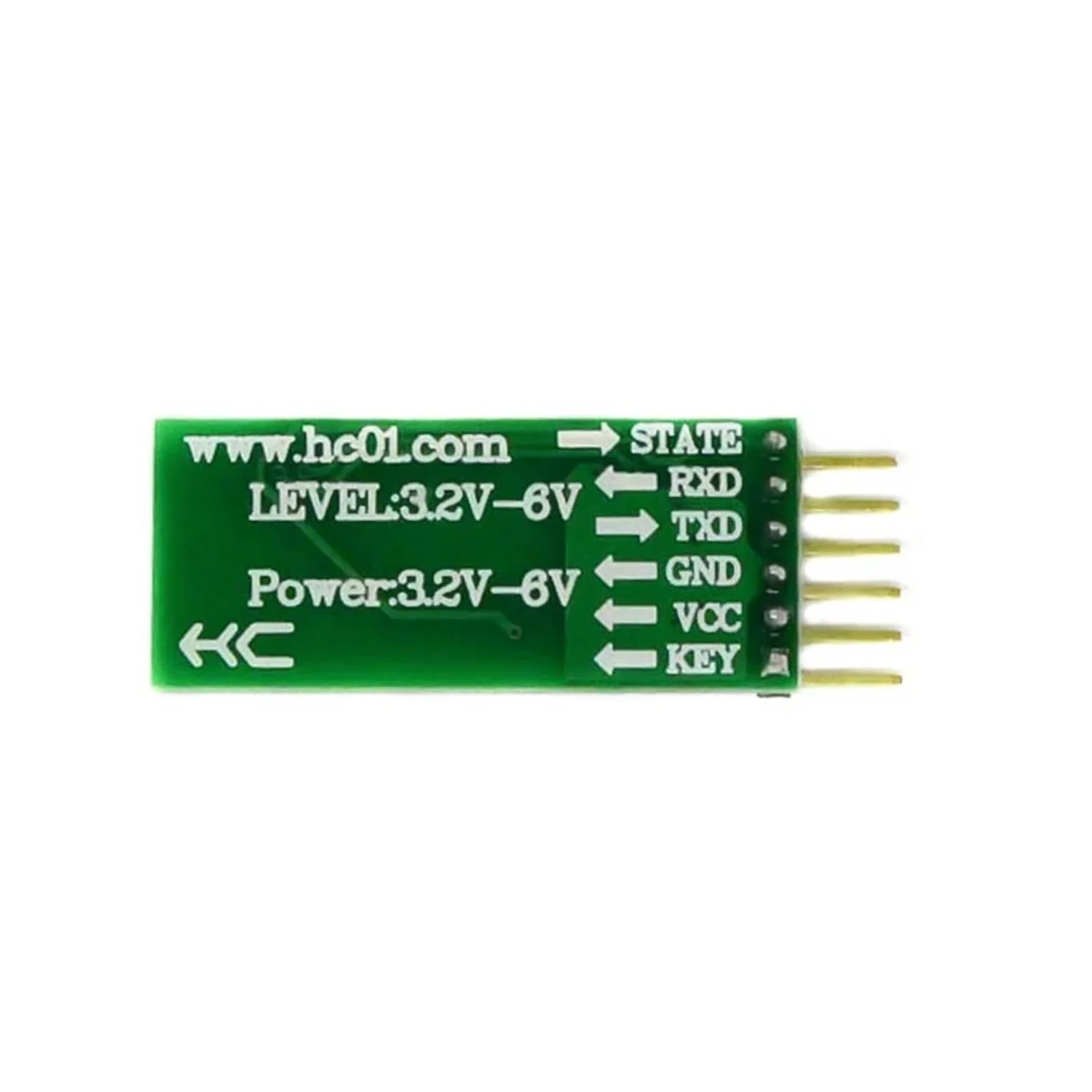

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

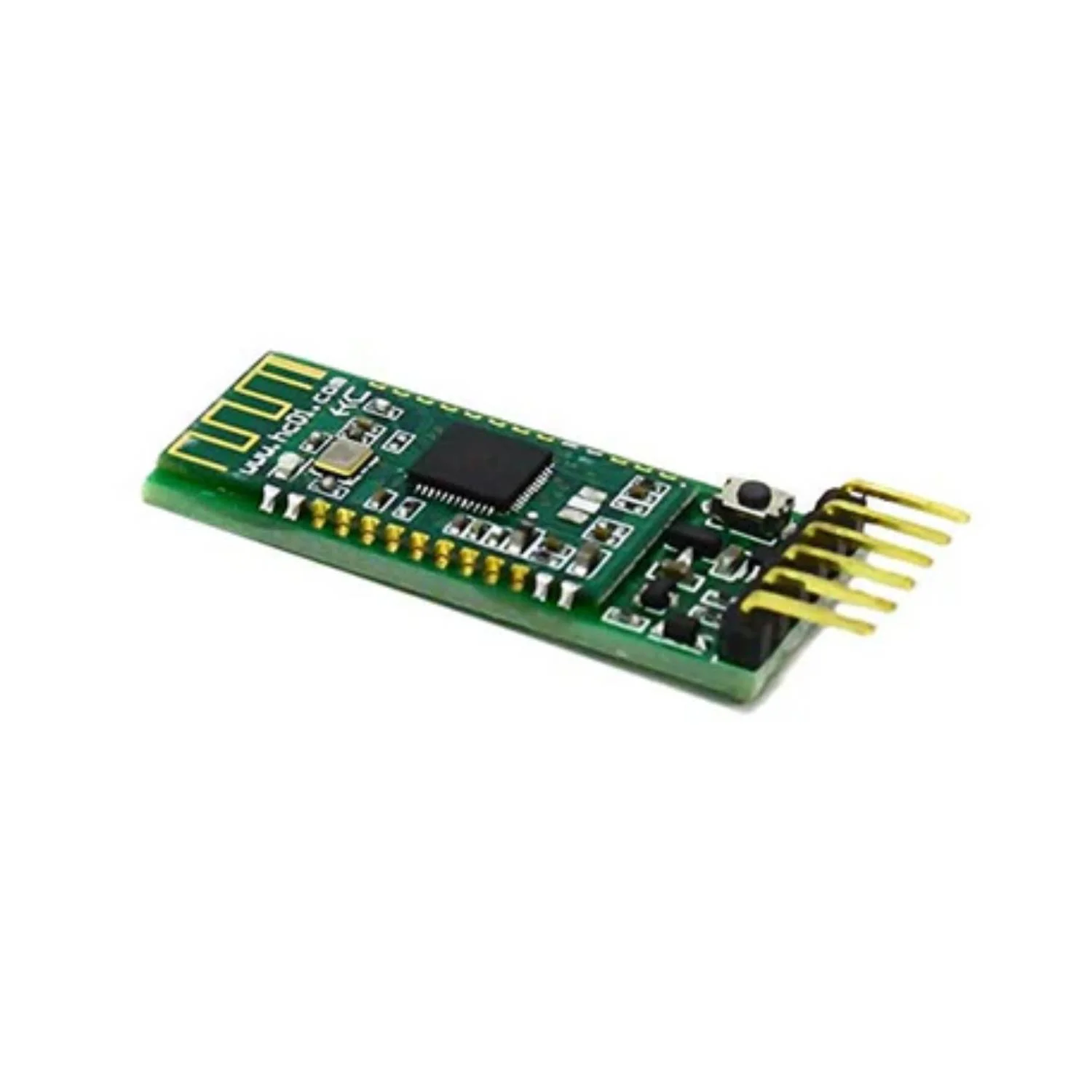

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Description:

HC-42 Bluetooth Module You can easily send data serially to, for example, your phone, tablet, or Other (HC-42) Bluetooth modules. HC-05 could be set to master or slave by a user. HC-06 can only be master or slave which could be customized.

Specifications:

  • Working Temperature: -25℃~+75℃
  • Part Number: HC-42D
  • Version: BLE 5.0
  • Module Size: 37mm *15.6 mm
  • Frequency Band: 2.4G
  • Air Rate: 1Mbps/2Mbps
  • Working Voltage: 1.8~3.6V
  • Antenna: PCB internal antenna
  • Shutdown Current: 0.3μA
  • Communication Interface: UART
  • Sensitivity: -96dBm@1Mbps
  • Level: 1.8~3.6V， Same to Working Voltage
  • Working Humidity: 10％~90％
  • Transmit Power: -40~4dBm
  • Storage Temperature: -40℃~+85℃
  • Reference Distance: 40m/2Mbps（BLE 5.0）
HC-42 Bluetooth 5.0 BLE Serial Module: 6-Pin, Long-Range Data Transfer
HC-42 6-Pin Serial Port Bluetooth 5.0 BLE Module for Wireless Data
HC-42 BLE 5.0 Serial Module: 6-Pin, Effortless Long-Term Wireless Integration

Package Included:

1 x HC-42 Bluetooth Module
