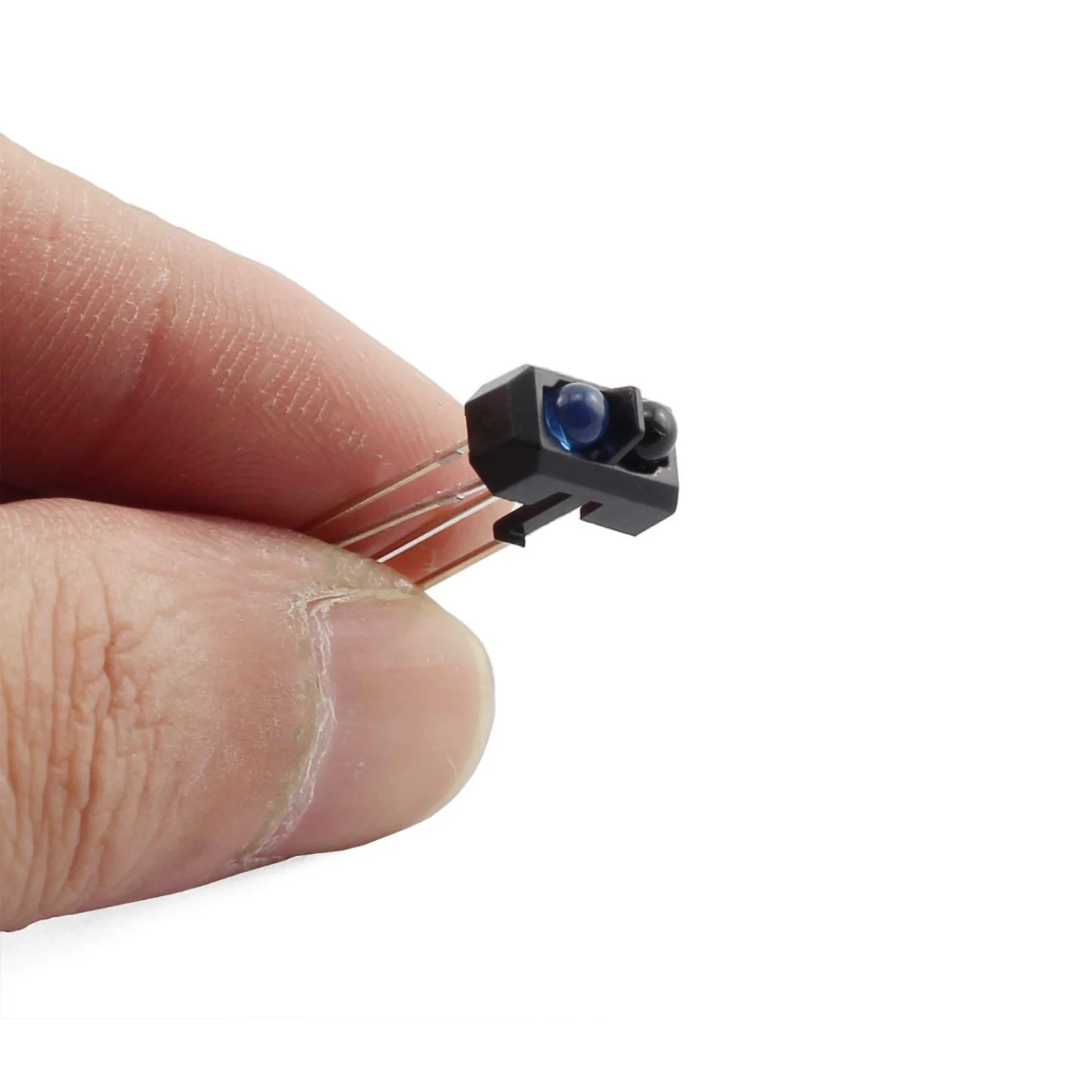

TCRT5000 Reflective Photoelectric Switch Reflective IR Sensor For Proximity Detection Object Detection Switch Module - RS1469

Description:

The TCRT5000 Reflective IR Sensor works with the general principle of infrared sensors, a sense of transfer. Tcrt5000 has an infrared emission tube and an infrared receiver tube. When the infrared emission tube is reflected in the receiver tube to receive, the resistance of the receiver tube will change.

The TCRT5000 Reflective IR Sensor circuit is generally reflected in the form of voltage changes, and after the conversion of the ADC or circuit form lm324 and another output processed after the results.

Changes in resistance in the receiver tube to receive the infrared signal strength, It is often reflected on the reflective surface of the color and the reflector distance of the receiver two aspects.

Specifications:

Model	TCRT5000
Operating Voltage	3.6~5V DC
Average Current Consumption	60mA
Distance Measuring Range	1.5cm
Output Type	Phototransistor
Working Temperature Range	-25 to 85°C
Color	Black + blue
Material	Plastic + iron
Detecting Method	Reflective
Transistor Properties	Collector-Emitter: Voltage: 70V Collector Current: 100mA Forward Current: 60mA

Features:

• Compact construction
• Senses the presence of an object by using the reflective IR beam from the object

Package Included :

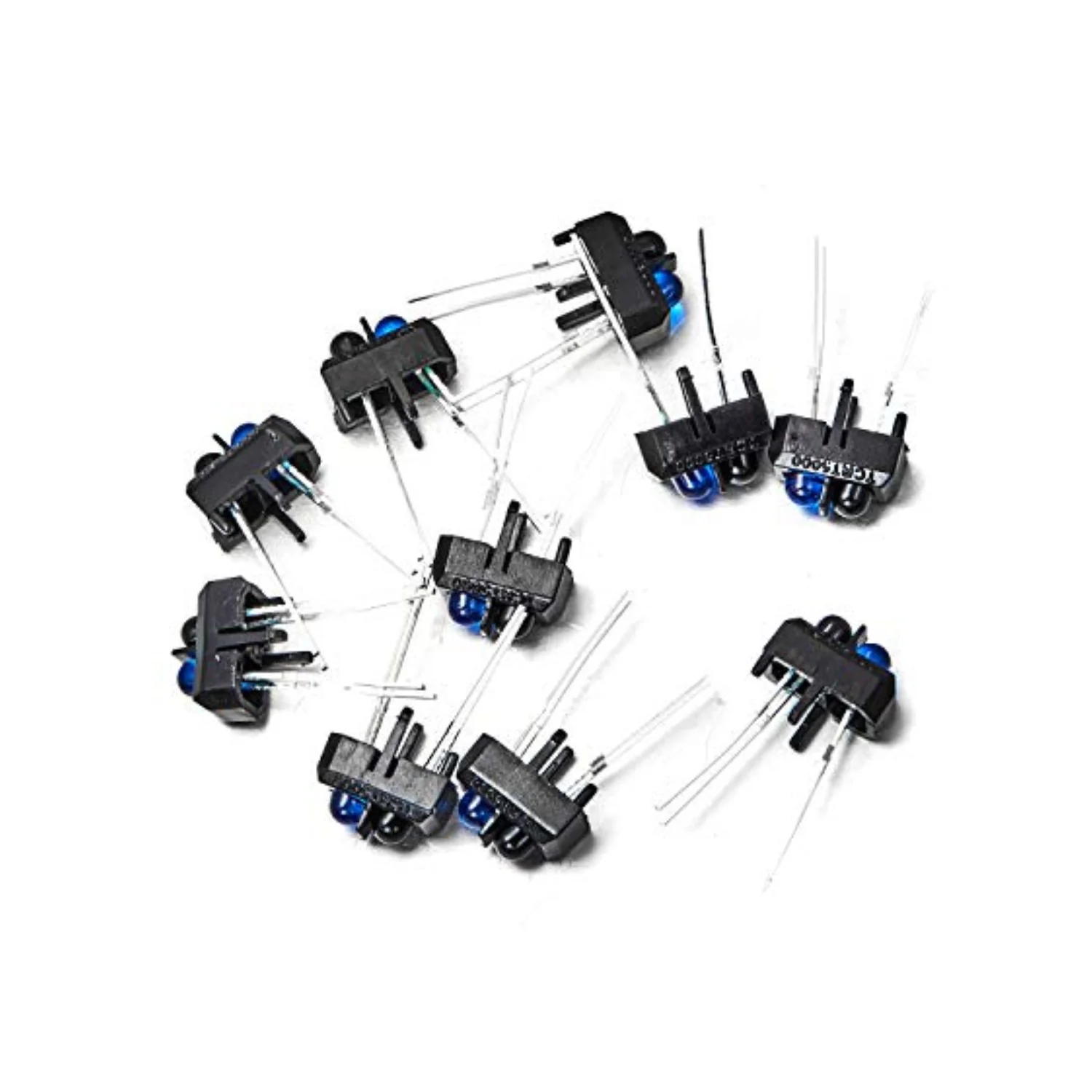

1 x TCRT5000 Reflective IR Sensor
