Description:

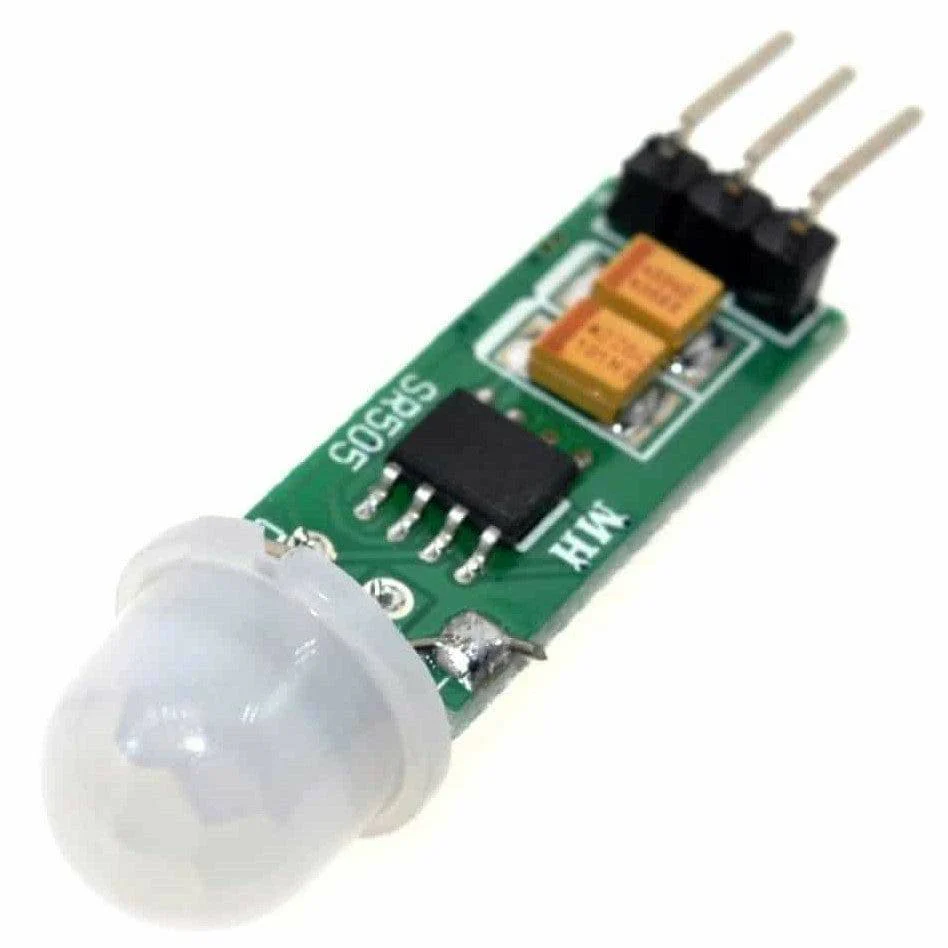

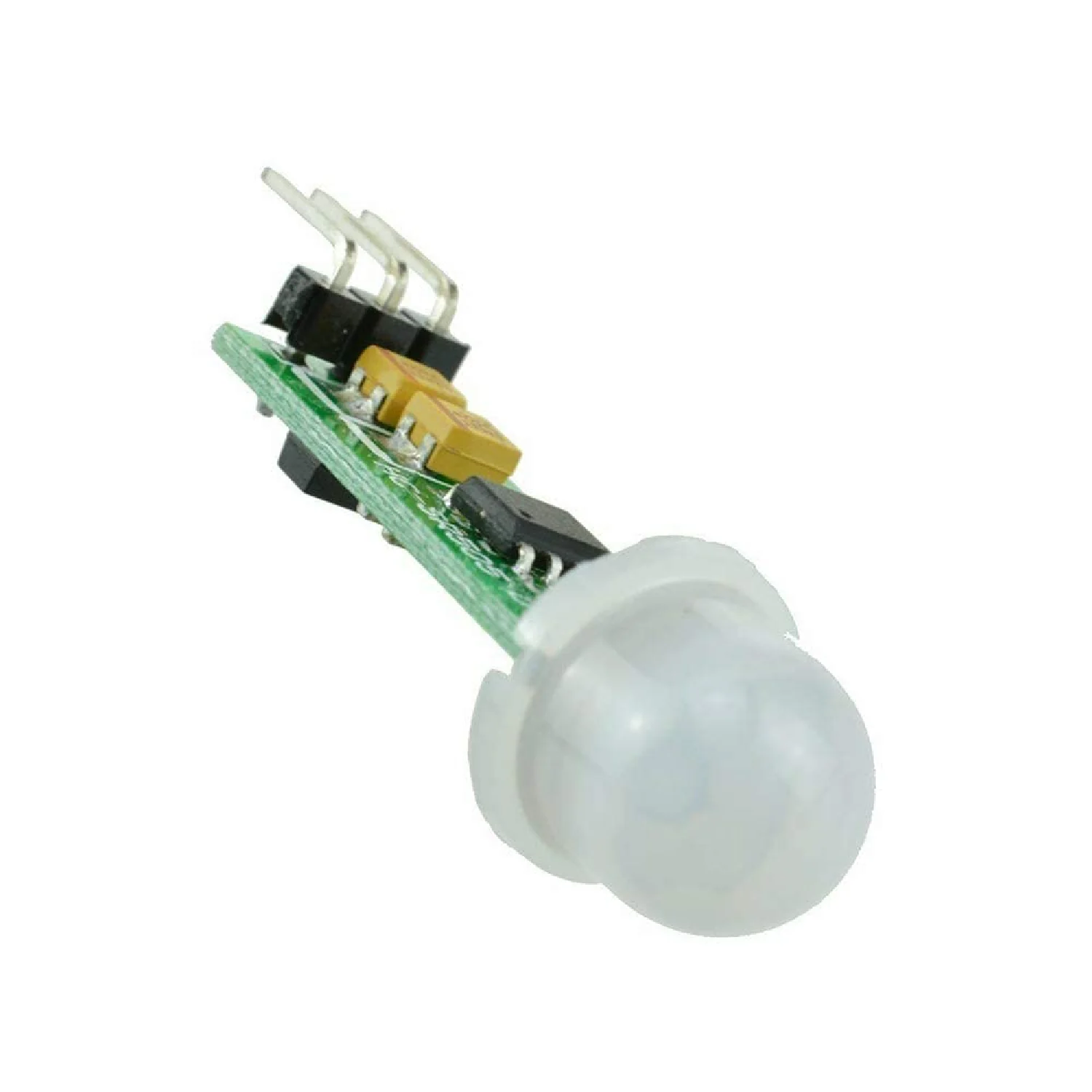

The HC-SR505 Mini Infrared PIR Motion Sensor is a highly sensitive and reliable motion detection module utilizing passive infrared (PIR) technology. Its ultra-small form factor and low-voltage operation make it ideal for battery-powered devices and space-constrained applications, providing automatic, motion-activated control for a wide range of electrical equipment
Specifications:
- Operating Voltage Range: DC4.5-20V
- Static current: <60uA
- Output level: High 3.3V / Low 0V
- Trigger: repeatable trigger (default)
- Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
- PCB Dimensions: 10 * 23mm
- Induction angle: <100 degree cone angle
- Induction distance: 3 meters
- Working temperature: -20 - +80 degrees
Features:
- Minimal power consumption, ideal for battery operation.
- Clear digital high/low signal for easy integration.
- Continuous high output during motion, extending delay.
- High output upon motion, delayed low output after.
- Compact design for space-constrained applications.
Applications:
- Body induction lamps
- Body sensors toys
- Security Products
- Industrial automation and control
- Auto-sensing of electrical equipment
- Battery-powered automatic control
Package Included:
1 x HC-SR505 Mini PIR Motion Sensor
