PIR Motion Sensor HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Modules - SR019

Description:

The PIR Motion Sensor Detector Module HC-SR501 is designed to detect motion, primarily the movement of a human body within its range. It’s commonly known as a “PIR,” “Pyroelectric,” “Passive Infrared,” or “IR Motion” sensor.

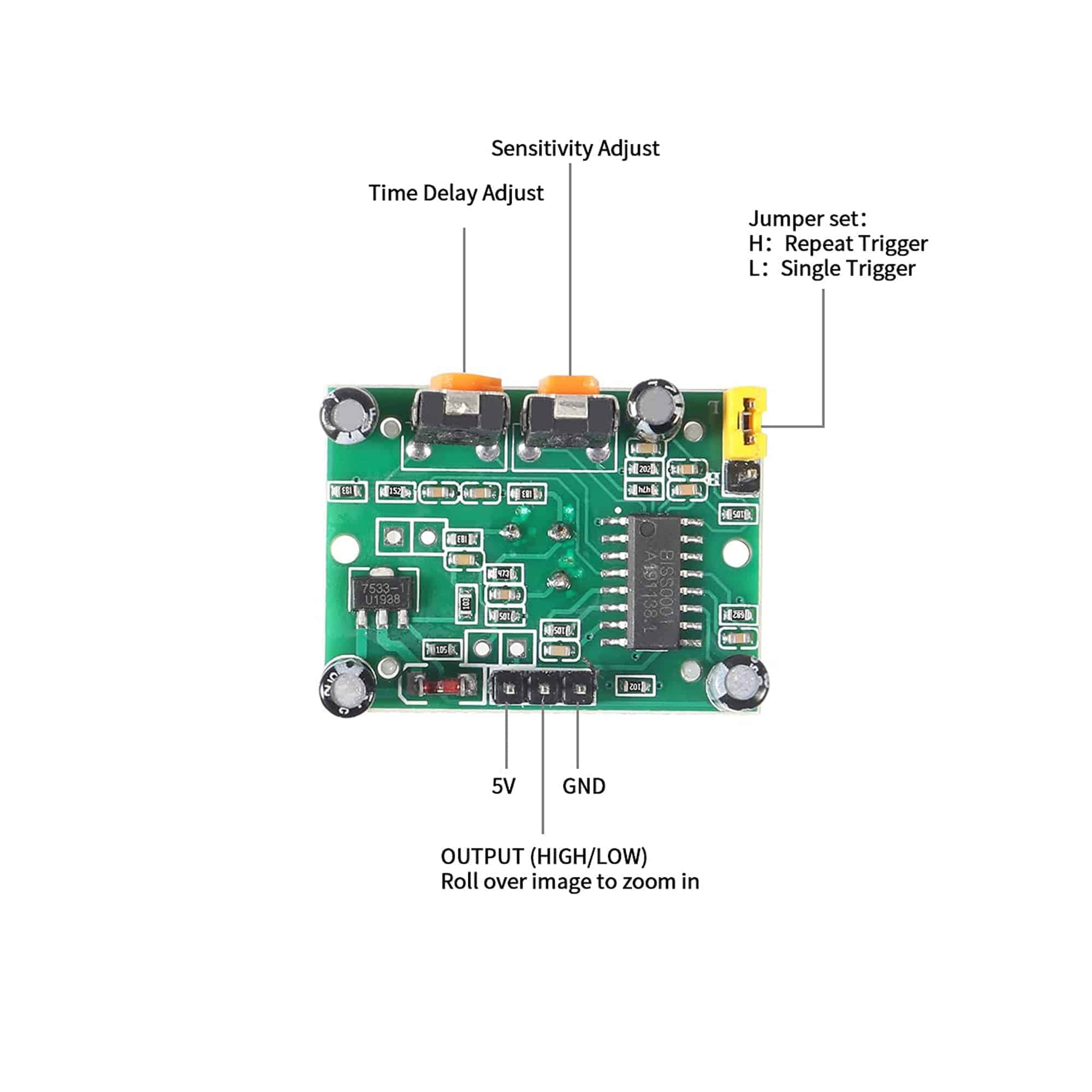

This module features an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It includes a potentiometer for adjusting delay time and another for sensitivity. It is compatible with platforms such as Arduino, Raspberry Pi, AVR, PIC, and 8051, making it versatile for various applications.

Specifications:

• Model: PIR HC-SR501
• Operating Voltage (VDC): 4.5 ~ 20
• Average Current Consumption (mA): 0.06
• Distance Measuring Range (CM): 300 ~ 700
• Output Type: (High/ Low-level Signal) 3.3V TTL output
• Dimensions (LxWxH) mm: 32 x 24 x 18
• Weight (g): 10
• Operating Temperature (°C): -20 to 80
• Detection Angle: <140°
• Delay Time: 5 to 200s (Can be Adjusted, Default 5s +/- 3%)

Features:

• Infrared Sensor with Control Circuit Board
• The Sensitivity and Holding Time is adjustable.
• Blockade time: 2.5s (Default)
• Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
• Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Package Included:

1 x PIR Motion Sensor
