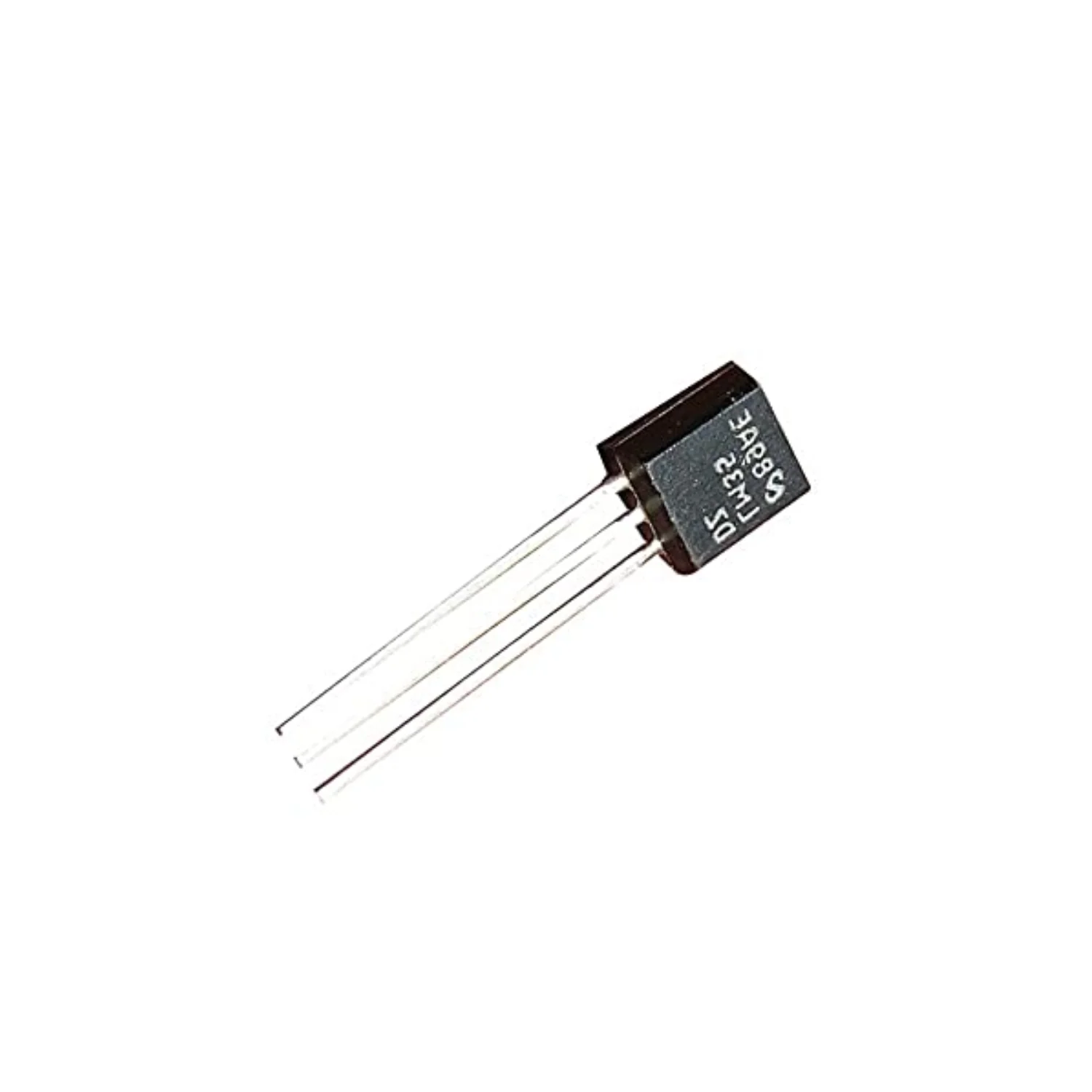

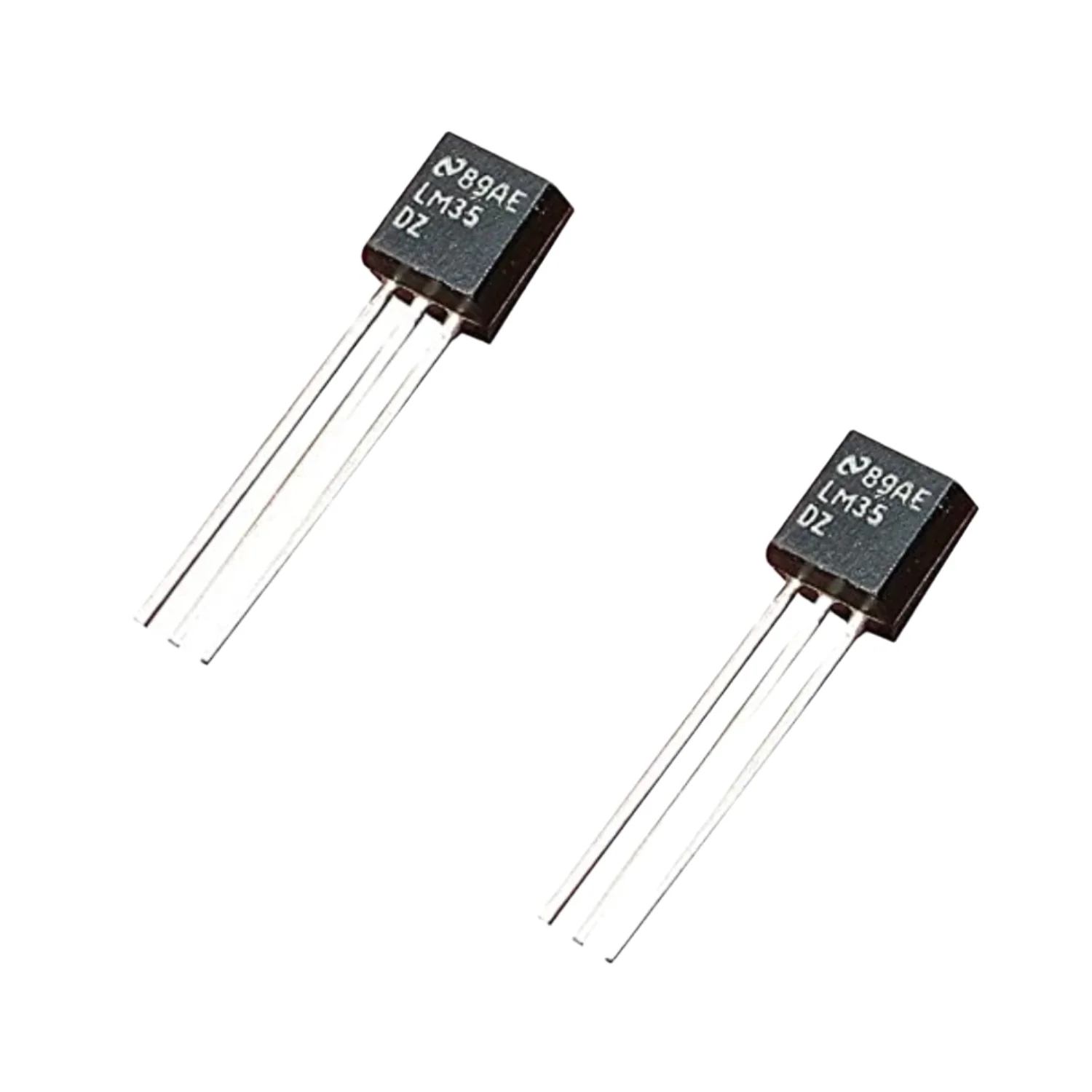

LM35 Temperature Sensor Precision Analog Temperature Sensor With Arduino - QR207

Description:

The LM35 Temperature Sensor it's a precision temperature powerhouse. This integrated analog sensor delivers a voltage output directly proportional to Celsius, making temperature readings effortless and accurate.

Say goodbye to complex calibration—the LM35 handles it internally, offering a low impedance, linear response that simplifies integration with any display or control system. Its 10mV/°C linear output means it plugs straight into 10 or 12-bit ADCs. Even for 8-bit ADCs, a simple amplifier unlocks granular 1°C detection. From Arduino interfacing to over-temperature protection with comparator circuits or relay-driven temperature control, the LM35 is your go-to for reliable thermal sensing.

Specifications:

• Case/Package: TO 92 3
• Mounting Type: Through Hole
• Sensor Type: Temperature Sensor
• Output Type: Analog Voltage
• Max. Supply Voltage: 30(V)
• Min Supply Voltage: 4
• Operating Temperature: -55 to 150(°C)

Features:

• Calibrated directly in degrees Celsius (Centigrade)
• Linear at 10.0 mV/°C scale factor
• 0.5°C accuracy guarantee-able(at a25°C)
• Suitable for remote applications
• Low cost due to wafer-level trimming
• Operates from 4 to 30 volts
• Less than 60 mA current drain
• Low self-heating, 0.08°C in still air
• Non-linearity only 0.25°C typical
• Low impedance output, 0.1Ωfor 1 mA load

Package Included:

1 x LM35 Temperature Sensor
