12MM SFE Push Button Switch - RC110

• Product Name: Tactile switch
• contact Type: Momentary contact
• current Rating: 50mA
• Voltage Rating: DC 12V

Description:

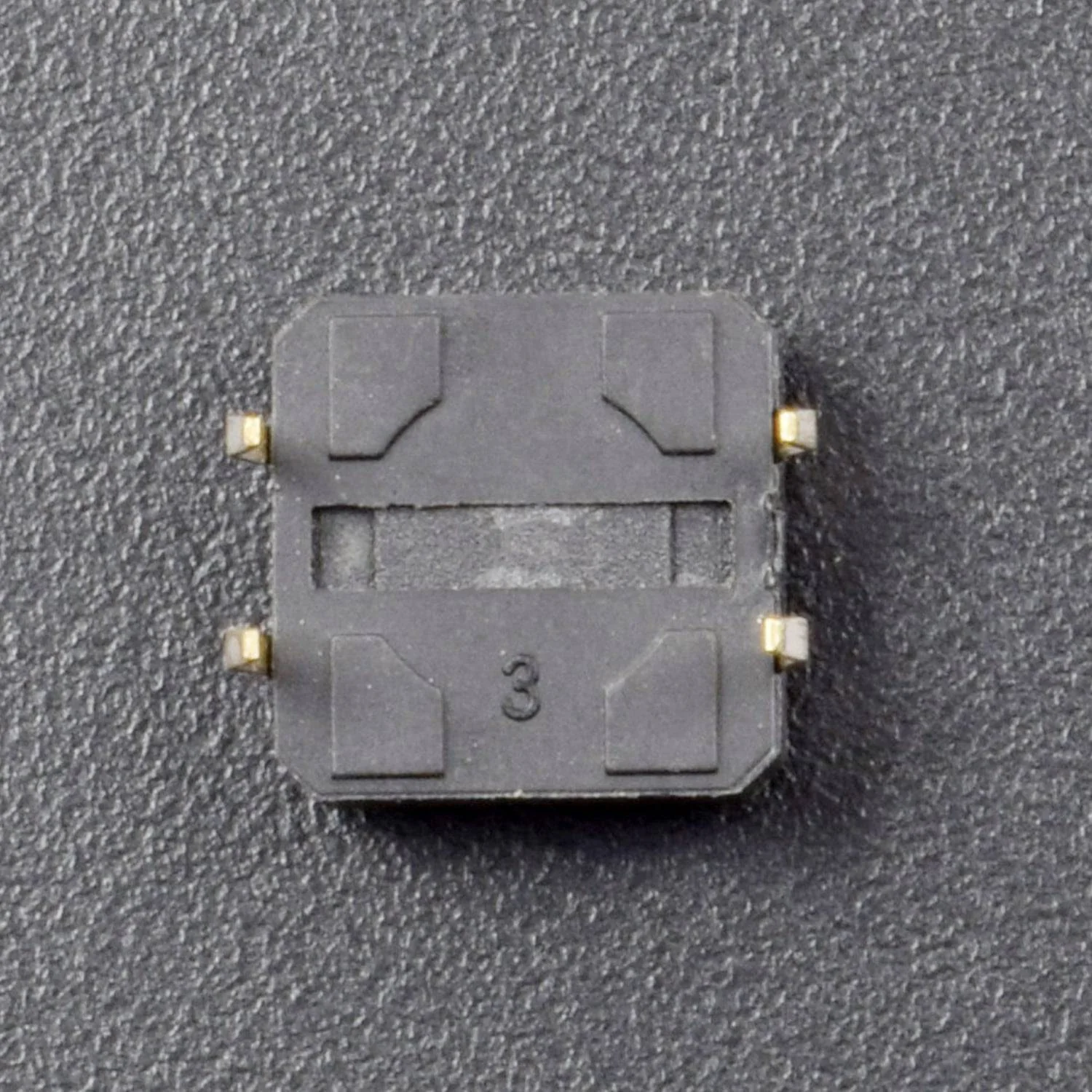

The SFE 12mm Push Button Switch is a standard 12mm square momentary button. It features the large button head and good tactile feel. It 'clicks' really well. This button is great for user input on a PCB or a good, big reset button on a breadboard. Feature momentary contact, 4 pins, black square push button, through-hole mounting. Used in the fields of electronic products, household appliances and more. High precision mechanism design offers acute operation and long service life.

Specification:

• Product Name: Tactile switch
• contact Type: Momentary contact
• current Rating: 50mA
• Voltage Rating: DC 12V
• contact resistance: 100 M Ohm
• dimension: 12 x 12 x 4. 3mm / 0. 47" x 0. 47" x 0. 17" (l*w*h)
• Button Size: 6 x 1. 3mm / 0. 24" x 0. 05"(D*h)
• Pin Pitch: 14 x 5 mm / 0. 55" x 0. 19" (low)
• Pin Length: 4 mm/0. 16"
• Material: plastic, metal, electric parts
• Main Color: black, Silver Tone

Features:

• Standard 12mm square switch
• Breadboard friendly
• Method of input for various projects
• Great for use as reset button

Dimension:

Package Included:

1 x 12mm Push Button Switch
