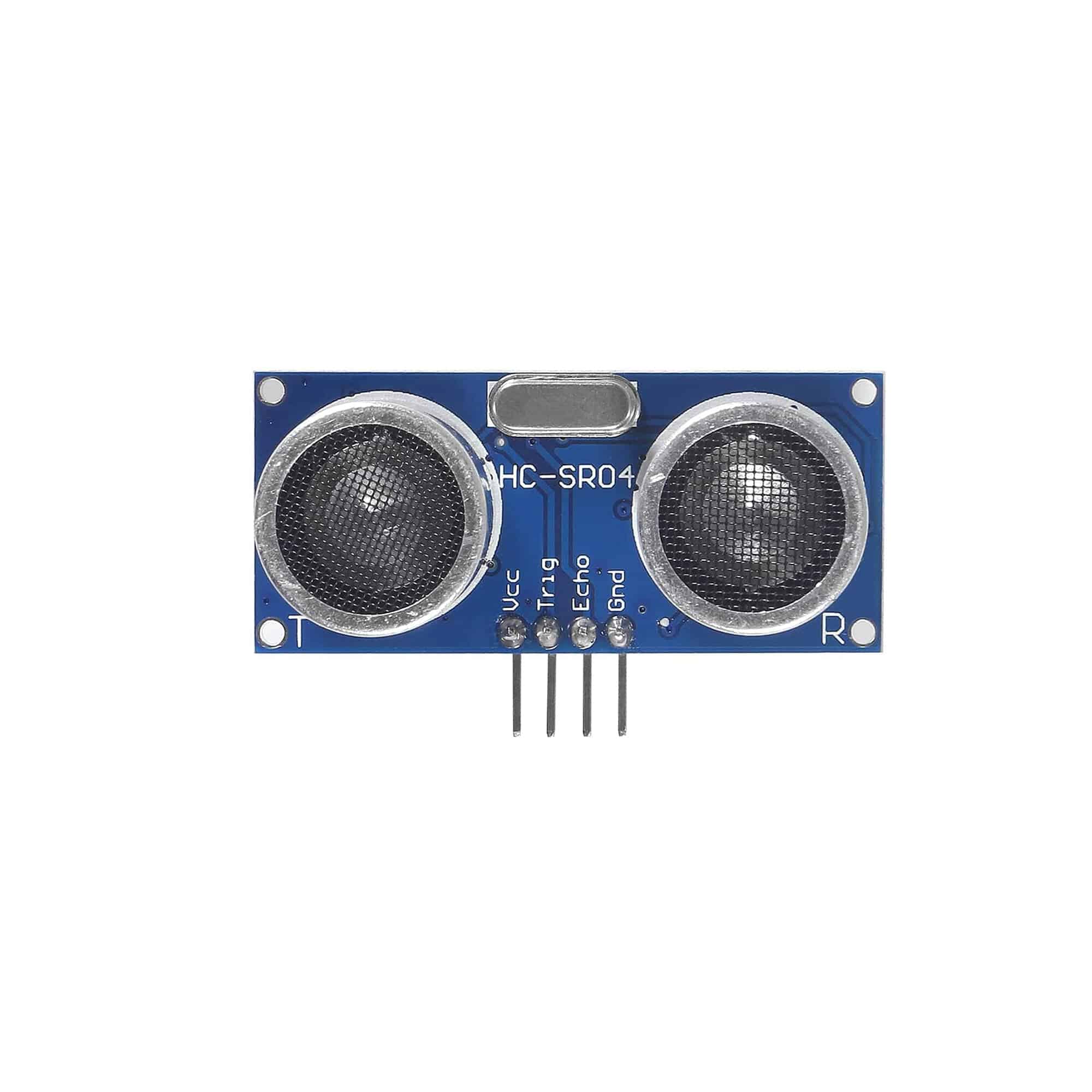

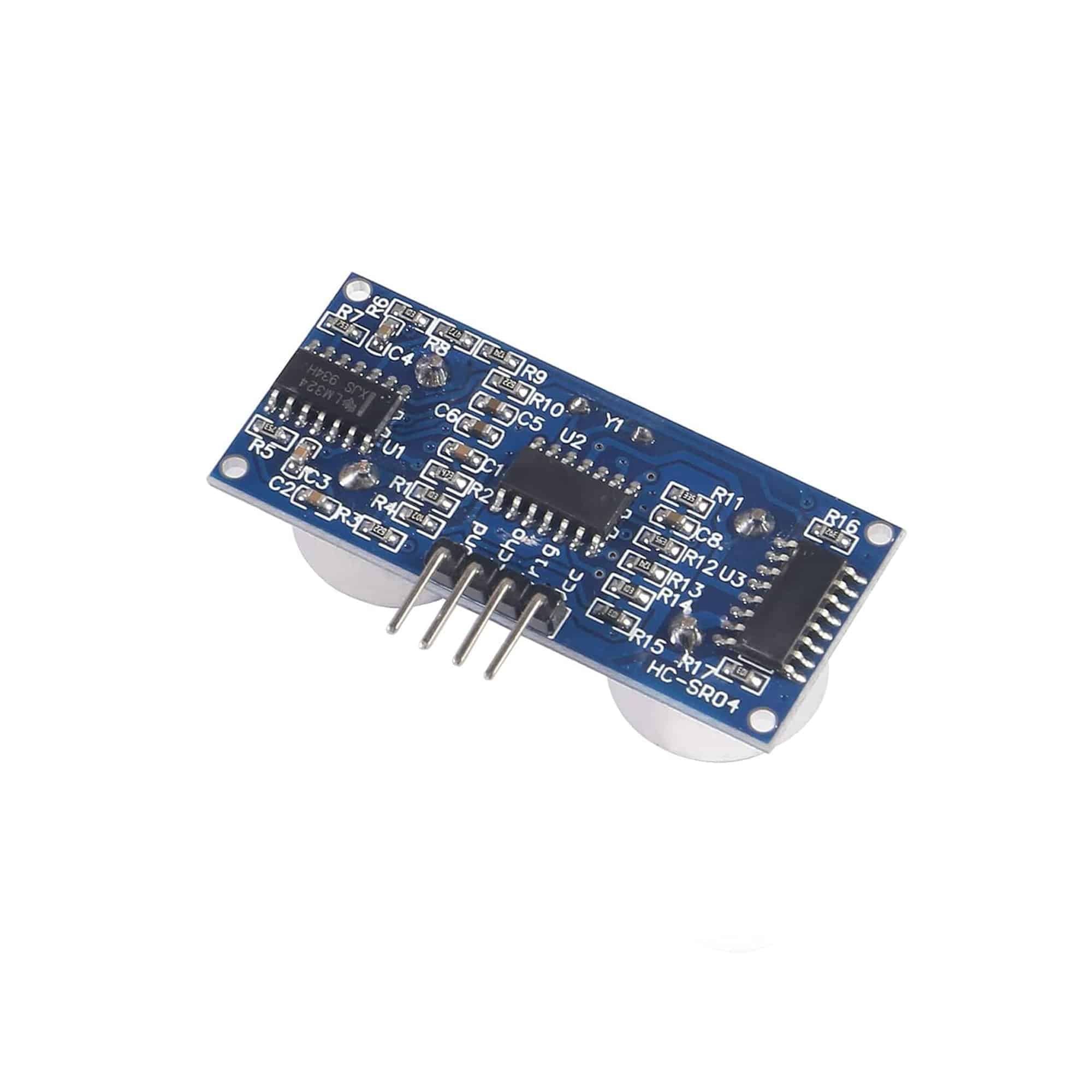

Ultrasonic Sensor HC-SR04 Ultrasonic Range Finder Module Sensor Distance Measuring Transducer - SR014

Description:

The HC-SR04 Ultrasonic Distance Sensor offers precise and stable non-contact distance measurements ranging from 2cm to 400cm. This versatile module is easy to integrate with any microcontroller, making it ideal for a wide range of projects.

Specifications:

• Model: HC-SR04
• Operating Voltage: 5V DC
• Average Current Consumption: 2mA
• Frequency: 4000 Hz
• Sensing Angle: 15°
• Max. Sensing Distance: 450cm

Features:

• Wide measurement range: Detects distances from 2cm to 400cm, catering to various application needs.
• Stable performance: Provides consistent and reliable distance measurements.
• Accurate results: High-density sensor delivers precise distance measurements with up to 2mm accuracy.
• Small blind distance: Offers accurate readings even in tight spaces.
• Easy interfacing: Simple wiring with 5V power supply, trigger control, and echo receive pins.
• High sensitivity: Delivers reliable performance even in challenging environments.
• Compatible with Arduino: Works seamlessly with Arduino boards, facilitating integration into Arduino-based projects.
• Working Voltage: 5V (DC)
• Static Current: Less than 2mA
• Output Signal: 5V
• Sensor Angle: Less than 15 Degrees
• Detection Distance: 2cm to 450cm
• High Precision: Up to 2mm
• Input Trigger Signal: 10µs TTL impulse
• Echo Signal: Output TTL PWL Signal


Package Included:

1 x Ultrasonic Sensor HC-SR04 Ultrasonic Range Finder Module Sensor Distance Measuring Transducer
