The Story
- Range : 2-4cm
- Potentiometer for maximum range setting
- Can be used to differentiate between black and white (Can be used for line sensing)
- Onboard LED indication for detection
- Works on 5V input
- TTL compatible output
- LM358 IC (Integrated Circuit) that acts as a comparator/ ADC (Analog to Digital Converter) IC which makes it a digital sensor.
Description:

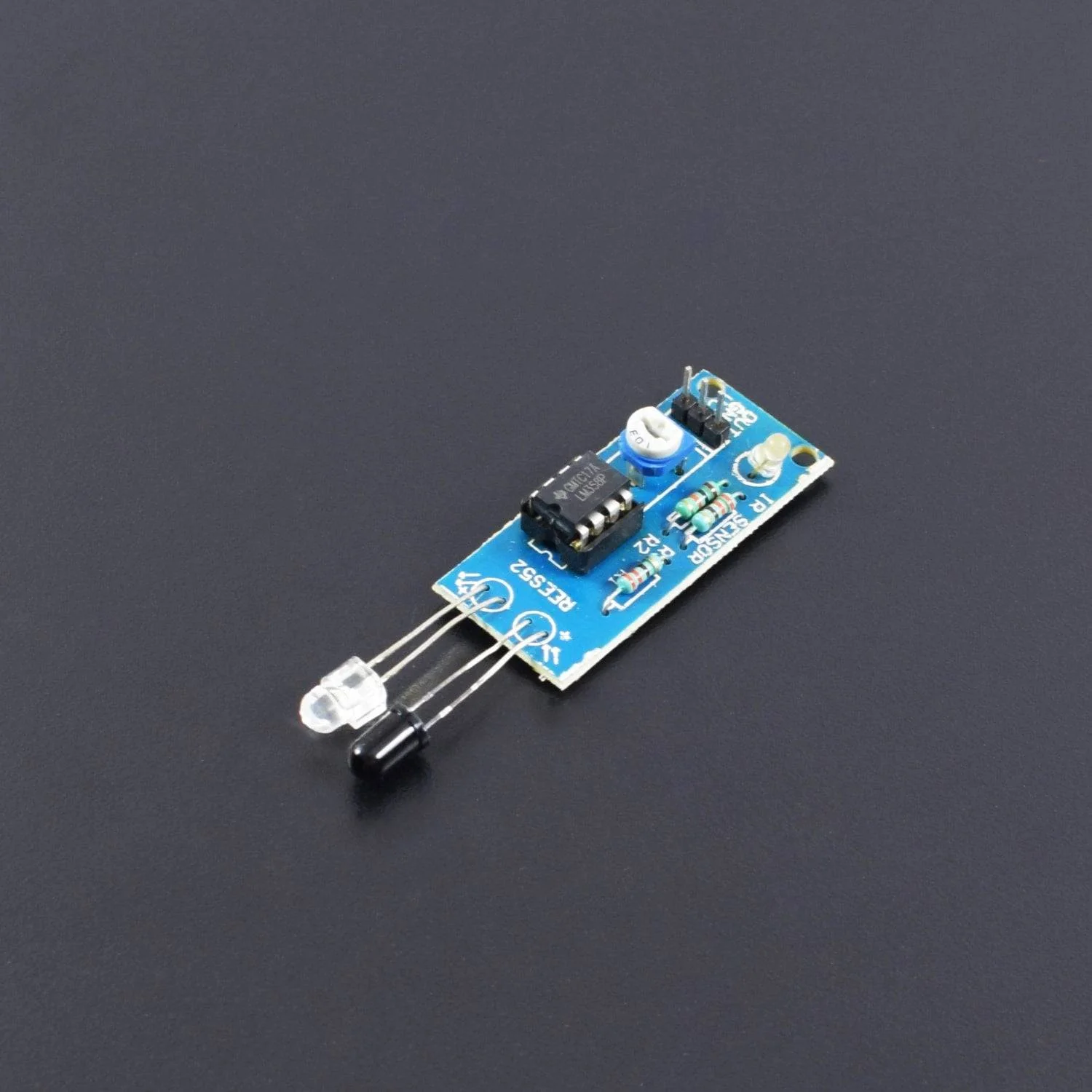

This is a multipurpose infrared sensor that can be used for obstacle sensing, line sensing, etc. and also as an encoder sensor. The sensor provides a digital output (1 or 0). The sensor outputs a logic one (+3.5V). At the digital output when an object is placed in front of the sensor and logic zero (0V) when there is no object in front of the sensor. An onboard LED is used to indicate the presence of an object.
Specification:
- Operating Voltage: 3.3~5V
- Ports: VCC / GND / OUT
Features:
- Potentiometer for maximum range setting
- Can be used to differentiate between black and white (Can be used for line sensing)
- Onboard LED indication for detection
- Works on 5V input
- TTL compatible output
- LM358 IC (Integrated Circuit) that acts as a comparator/ ADC (Analog to Digital Converter) IC which makes it a digital sensor.

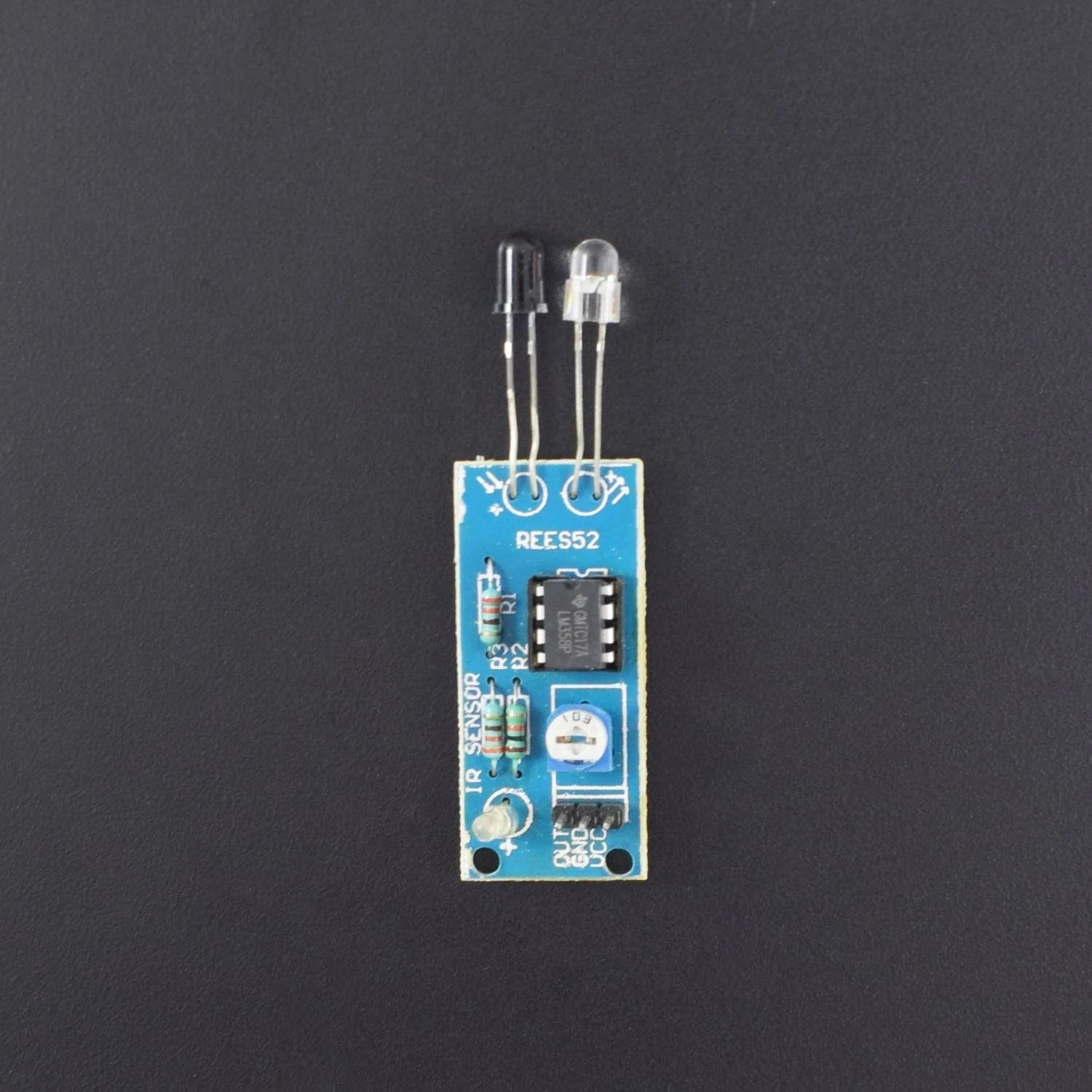

Pin Description:
Pin |
Name |
Description |
1 |
GND |
Ground (It grounds the Input and completes the circuit path) |
2 |
VCC |
3.3V to 5V (Recommended Voltage) |
3 |
OUT |
Output Pin that goes low when Obstacle is in range |
4 |
Power LED |
Illuminates when power is Applied |
5 |
Obstacle LED |
Illuminates when the obstacle is detected |
6 |
Distance Adjust |
Adjust detection Distance. |
7 |
IR Emitter |
Infrared Emitter LED |
8 |
IR Receiver |
The infrared receiver that receives the signal transmitted by Infrared Emitter |
Package Included:
1 x IR Sensor Module
