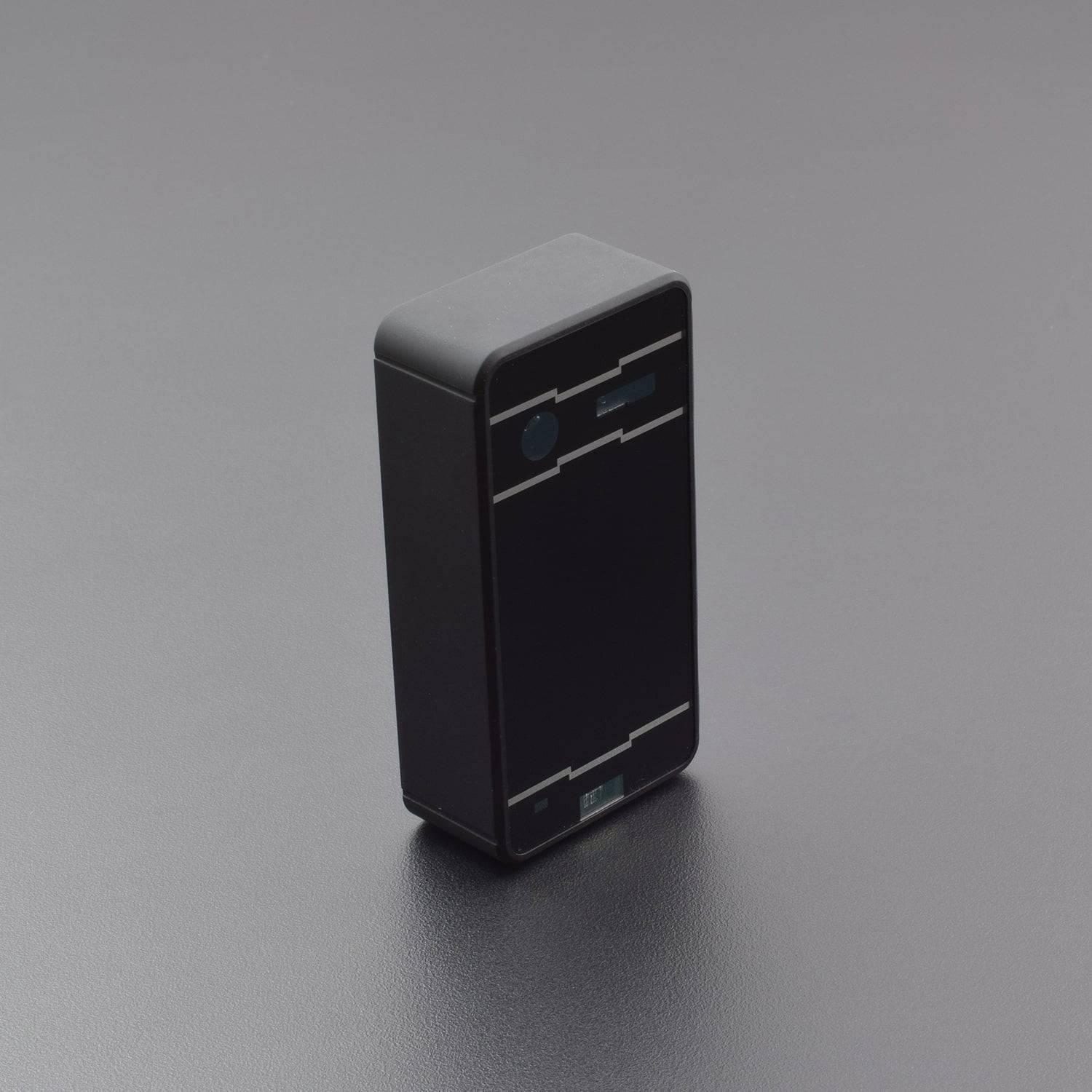

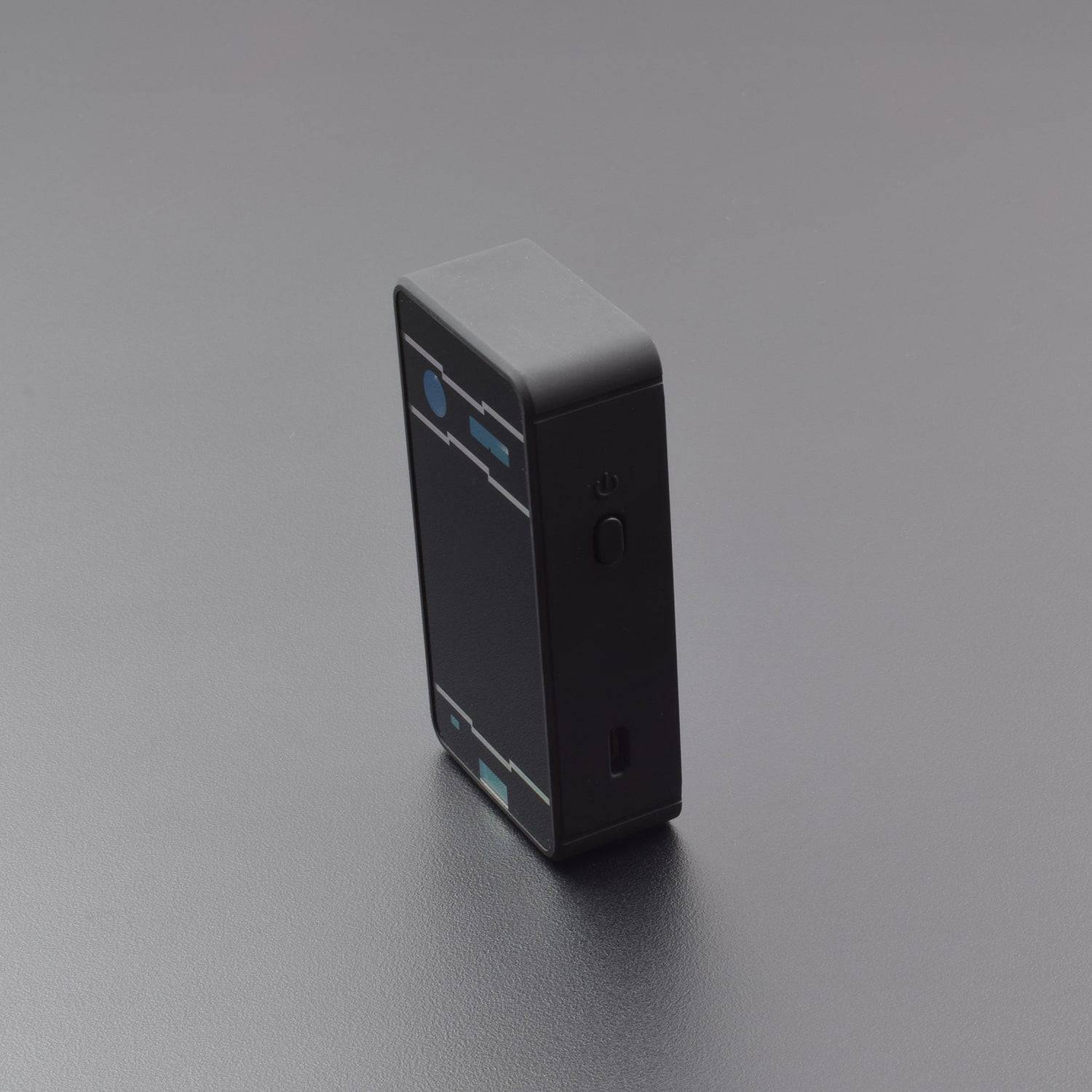

Bluetooth Laser Wireless Virtual Projection keyboard Portable for Smart Phones I pad Tablet PC Notebook - CA001

• Superior Portability
• English QWERTY keyboard layout
• Supports USB interface and Bluetooth, and mobile devices is a very convenient link
• Built-in lithium polymer rechargeable battery, easy to move and carry

Description:

This keyboard has been equipped with wireless Bluetooth mini speakers. You can use it as not only a wireless projected keyboard, but also a Bluetooth speaker for your iPhone 6, iPad, tablet, android smart phones, laptop and PC. However, please NOTE that its tone quality is NOT comparable with professional speaker because its voice cavity is limited. We changed mini USB port to Micro USB port in order to be compatible with more USB cables. Even if you lost the USB cable we sent to you, you can easily to find too much compatible cable around you.
We upgraded the internal rechargeable battery from 600mAh to 1000mAh. It can work much longer. This keyboard supports auto sleep mode. When you leave it alone for 8 seconds, it will shift to energy-saving mode automatically. The projected keyboard will dim off. To wake it up, just move your finger on the projected area. Compatible with latest operating systems: Windows XP/VISTA/7, Windows Phone 7, IOS4/5/6. This keyboard supports mouse function for Android cell phones and computer. This keyboard is equipped with a Bluetooth speaker. It supports voice broadcasting. This keyboard can be used as an external Bluetooth speaker for your iPhone, iPad and Android smartphones. We upgrade the internal rechargeable battery from 600mAh to 1000mAh.

Features:

• Superior Portability
• English QWERTY keyboard layout
• Supports USB interface and Bluetooth, and mobile devices is a very convenient link
• Built-in lithium polymer rechargeable battery, easy to move and carry
• Compatible with the latest equipment Windows XP / VISTA / 7/8, Windows Phone 7, IOS4 / 5/6 (iPhone and Ipad) Android 3.1 and later, Max OS X.
• Bluetooth Version: 3.0 with HID Profile Ver. 1.0
• Keyboard Light Source: Red Laser Diode

• Projection Size: 241mm x 101mm

• Projected Keyboard Location: 97.9mm from Keyboard Device

• Keystroke Sound: Built in Buzzer (Mute Possible)

• Visibility: Good Contrast up to 1800 LUX

• Detection Rate: 400 Characters per Minute

• Detection Algorithm: Multiple Key Strokes
• Required Projection Surface: Non-reflective, Opaque Flat Surface

• Power Source: Built in Battery

• Battery Size: 1000mAh
• Compatible Software: Windows XP/Vista/7/8, IOS 4.0 above for Iphone 4/5s/5c/6/6Plus and for Ipad, Android 4.0 above,for MAC OS X

• Language: English

Functional Description:

• Red light: long bright - Charging Off - Charging complete
• Blue light: Blinking - Pairing Status Off - pair
• Yellow light: flashes once - start normally

How to connect:

This product is connected via Bluetooth HID and USB HID Laser Bluetooth keyboard, the product, and the operating system all function compatible USB HID, USB HID connection plug and play, no need to install a separate driver.

• Connect via USB HID:

  • Laser Bluetooth keyboard and the host device using a USB cable connection, the host device must support USB HID
  • Note: Most Windows devices support USB HID.
  • Turn on the laser Bluetooth keyboard.
  • After laser Bluetooth keyboard connected properly, if the LED indicator lights red, it indicates charging; LED red light is off, it indicates that charging is complete. Under the state of charge of the product can be used normally.

• Connection via Bluetooth HID:

  • Compatible with Bluetooth HID device: So Microsoft OS, IOS4 / 5/6 (iPhone and iPad), Android 3.1 and later, Mac OS X.
  • This product supports Bluetooth HID connection, without having to install a separate driver, and a mobile phone or tablet with a single connection, the connection information will be retained after the Bluetooth Laser Keyboard shutdown, if necessary, and another device is connected, you need to remove before connection:

    • Open Laser Bluetooth Keyboard equipment
    • Clear existing Bluetooth connection: Press and hold the "Fn + B", after the beep equipment for pairing state, this time off, then other devices can be found after the reboot.
    • Blinking blue LED light changes to steady, indicating that the device is ready to pair
    • Host start scanning Bluetooth devices (iPhone or PC or iPad).
    • On IOS, type Settings-Bluetooth.
    • Click ON button means open Bluetooth, iPhone / iPad began looking paired device.
    • Click Laser Keyboard to complete pairing After successful pairing shows "Connected", the blue LED light will stop flashing.
    • Connection with the host device mounting system
    • Android System navigation icon as follow: Home → Main Menu → Settings → Wireless and Network → Bluetooth setting.
    • Click Laser Keyboard to complete pairing After successful pairing shows "Connected", the blue LED light stop.

Package Included:

• 1 x Laser Projection Keyboard
• 1 x USB Cable
• 1 x User Manual
